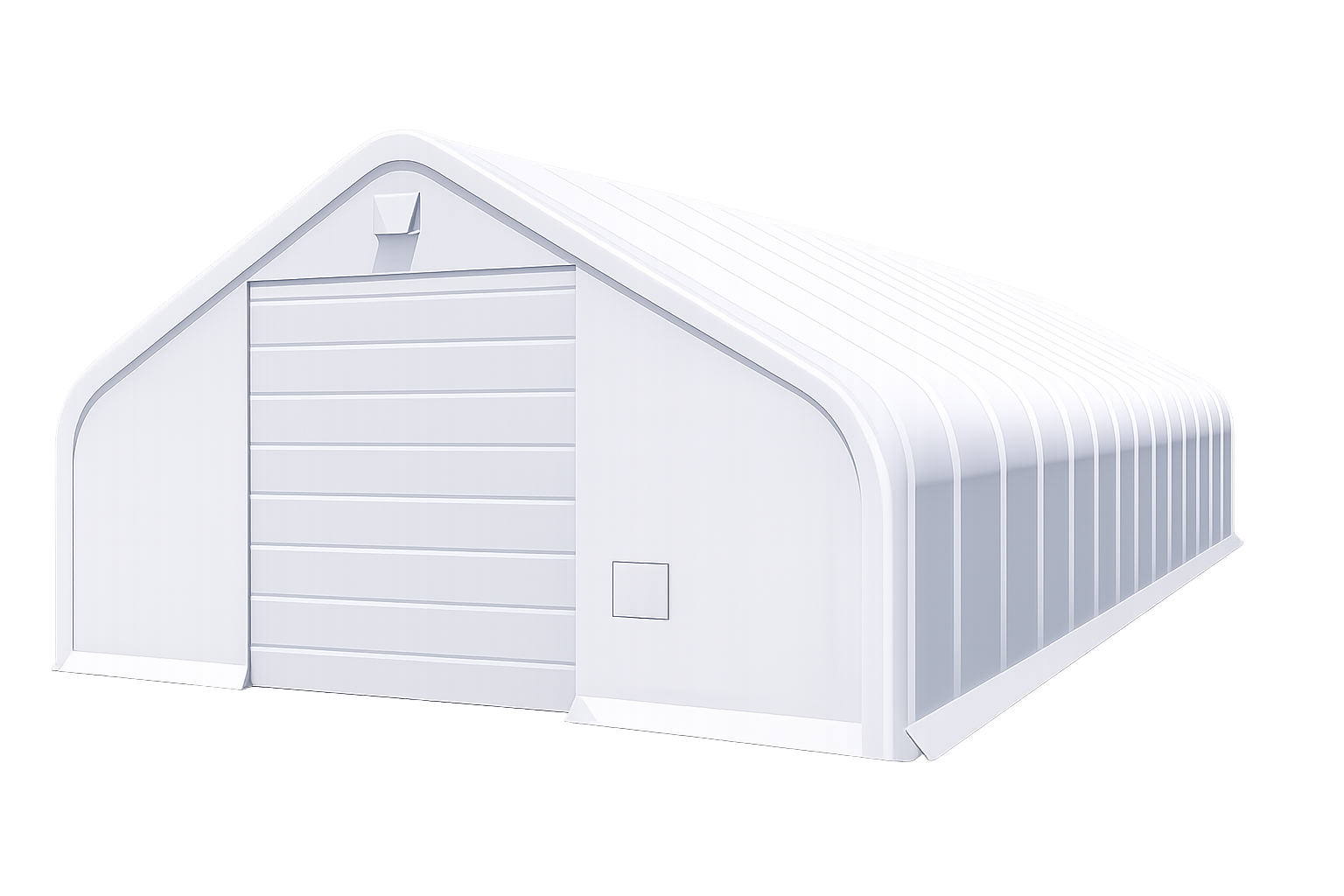

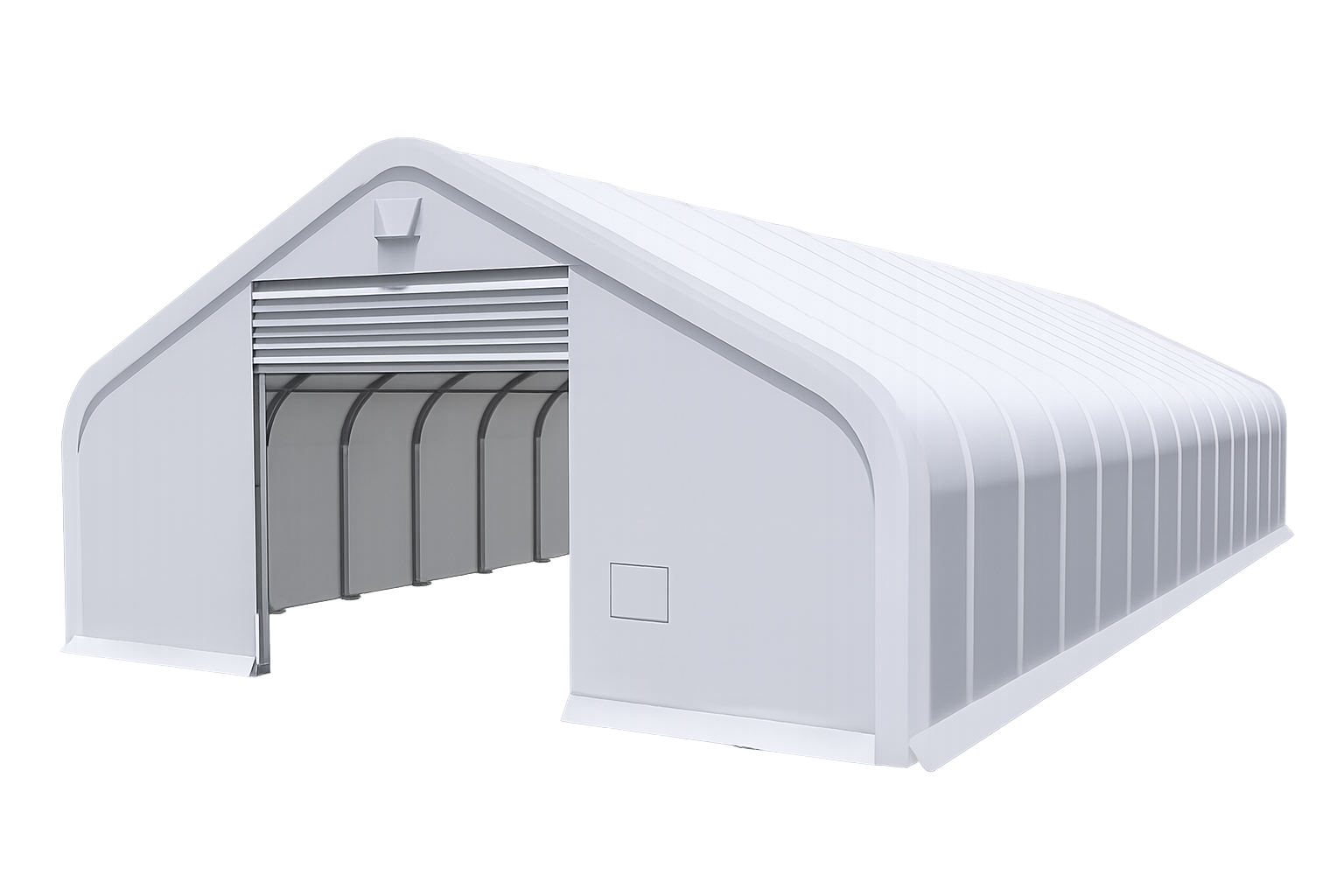

Gold Mountain Single Truss Peak Storage Shelter W30'xL64'xH15' 4FT

Available soon
SKU: SS-SP3064-500
No reviews
$11,999.00
Material
Preorder

Warranty

Frame 3 years, Tarp 2 years + 1 year prorated protection.

View details

Product details
  • Dimensions: 30' × 64' × 15'
  • Structure: Single-truss galvanized-steel frame
  • Roof Profile: Peak
  • Cover Options: 500g PVC
  • Arch Configuration: 17 main arches at 4 ft spacing
  • Performance Level: Heavy Duty
  • Typical Applications: Equipment, vehicle, machinery, material, and seasonal inventory storage
  • Installation: Use a suitable foundation and anchoring system; maintain cover tension

Product details

  • Dimensions: 30' × 64' × 15'
  • Structure: Single-truss galvanized-steel frame
  • Roof Profile: Peak
  • Cover Options: 500g PVC
  • Arch Configuration: 17 main arches at 4 ft spacing
  • Performance Level: Heavy Duty
  • Typical Applications: Equipment, vehicle, machinery, material, and seasonal inventory storage
  • Installation: Use a suitable foundation and anchoring system; maintain cover tension

Product Dimension

9.15m*20m*4.5m/30'*65'*15'

Floor Footprint

181m2/1950ft2

Highest Height

4.5m/15’

Frame Material

Galvanized Steel

Cover Material

PVC/PE

Main Arch Tube Diameter

42mm/1.65''

Main Arch Tube Thickness

2mm/0.08''

Main Arch Space

2m/6.56'

Purlin Tube Diameter

40mm/1.57''

Purlin Tube Thickness

1.5mm/0.06''

Door Size

3.5m*3.5m/11.4'*11.4'

 Snow Rate Test Result:

306515R

Test Load

Deflection

Lb

Kpa

Point A (inch)

Point B (inch)

Point C (inch)

Step 1

0

0

0

0

0

Step 2

1005

1.52

1.4

1.6

1.2

Step 3

1507

2.28

2.2

2.3

1.6

Step 4

Keep the test load until 30 minutes

Step 5

Remove the test load

0.6

1.1

1.2

Step 6

The test sample can withstand the applied test load without damage.

Product manuals and documents

304015P_306415P_308415P_4ft_EN.pdf

View Download

304015P_306415P_308415P_4ft_FR.pdf

View Download

Comparison

Attribute
Gold Mountain Single Truss Round Storage Shelter W30'xL65'xH15'
Basic 11 arches
W30'xL65'xH15' $5,999.00
Gold Mountain Single Truss Arch Wall Peak Storage Shelter W30'xL65'xH15'
Basic 11 arches
W30'xL65'xH15' $8,000.00
Gold Mountain Single Truss Round Storage Shelter W30'xL64'xH15' 4FT
Heavy Duty 17 arches
W30'xL64'xH15' $10,199.00
Current
Gold Mountain Single Truss Peak Storage Shelter W30'xL64'xH15' 4FT
Heavy Duty 17 arches
W30'xL64'xH15' $11,999.00
Door size W11.5' x H11.5' W11.3' x H11.3' W11.5' x H11.5' W11.3' x H11.3'
Snow load 1.6 kPa 1.6 kPa 1.8 kPa 1.8 kPa
Wind load 0.3 kPa 0.3 kPa 0.34 kPa 0.34 kPa
Warranty Frame 3 years, Tarp 2 years + 1 year prorated protection. Frame 3 years, Tarp 2 years + 1 year prorated protection. Frame 3 years, Tarp 2 years + 1 year prorated protection. Frame 3 years, Tarp 2 years + 1 year prorated protection.
