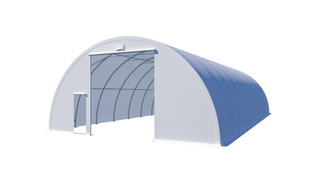

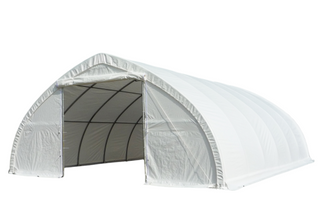

Gold Mountain Single Truss Round Storage Shelter W30'xL65'xH15'

Name: Gold Mountain Single Truss Round Storage Shelter W30'xL65'xH15'
Brand: Gold Mountain
SKU: SS-SR3065-500
Price: 5999.0 CAD
Availability: InStock

In stock

SKU: SS-SR3065-500

No reviews

$5,999.00

~~$8,000.00~~ -25% $5,999.00

*Limited-Time Offer — Sale ends September 25

Material 500g PVC

Product variants

Warranty

Frame 3 years, Tarp 2 years + 1 year prorated protection.

View details

Replacements

Accessories Parts

Product details

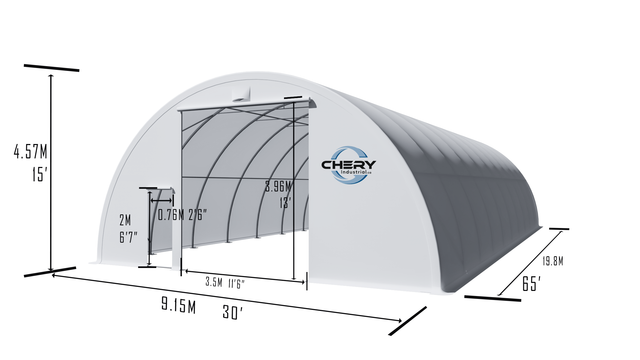

Dimensions: 30' × 65' × 15'
Structure: Single-truss galvanized-steel frame
Roof Profile: Round
Cover Options: 500g PVC
Arch Configuration: 11 main arches at approximately 6.5 ft spacing
Performance Level: Basic
Typical Applications: Equipment, vehicle, machinery, material, and seasonal inventory storage
Installation: Use a suitable foundation and anchoring system; maintain cover tension

Product Dimension	9.15m20m4.5m/30'65'15'
Floor Footprint	181m²/1950ft²
Highest Height	4.5m/15’
Frame Material	Galvanized Steel
Cover Material	PVC/PE
Main Arch Tube Diameter	42mm/1.65''
Main Arch Tube Thickness	2mm/0.08''
Main Arch Space	2m/6.56'
Purlin Tube Diameter	40mm/1.57''
Purlin Tube Thickness	1.5mm/0.06''
Door Size	3.5m3.5m/11.4'11.4'

Product manuals and documents

304015R_306515R_308515R_Assembly_Instruction_Round_EN.pdf

View Download

304015R_306515R_308515R_Assembly_Instruction_Round_FR.pdf

View Download

Product details

Dimensions: 30' × 65' × 15'
Structure: Single-truss galvanized-steel frame
Roof Profile: Round
Cover Options: 500g PVC
Arch Configuration: 11 main arches at approximately 6.5 ft spacing
Performance Level: Basic
Typical Applications: Equipment, vehicle, machinery, material, and seasonal inventory storage
Installation: Use a suitable foundation and anchoring system; maintain cover tension

Product Dimension	9.15m20m4.5m/30'65'15'
Floor Footprint	181m²/1950ft²
Highest Height	4.5m/15’
Frame Material	Galvanized Steel
Cover Material	PVC/PE
Main Arch Tube Diameter	42mm/1.65''
Main Arch Tube Thickness	2mm/0.08''
Main Arch Space	2m/6.56'
Purlin Tube Diameter	40mm/1.57''
Purlin Tube Thickness	1.5mm/0.06''
Door Size	3.5m3.5m/11.4'11.4'

Product manuals and documents

304015R_306515R_308515R_Assembly_Instruction_Round_EN.pdf

View Download

304015R_306515R_308515R_Assembly_Instruction_Round_FR.pdf

View Download

Comparison

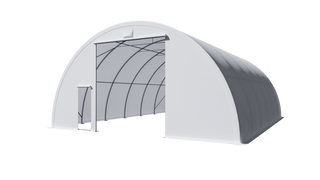

Attribute	Current Basic 11 arches W30'xL65'xH15' $5,999.00	Basic 11 arches W30'xL65'xH15' $8,000.00	Heavy Duty 17 arches W30'xL64'xH15' $10,199.00	Heavy Duty 17 arches W30'xL64'xH15' $11,999.00
Door size	W11.5' x H11.5'	W11.3' x H11.3'	W11.5' x H11.5'	W11.3' x H11.3'
Snow load	1.6 kPa	1.6 kPa	1.8 kPa	1.8 kPa
Wind load	0.3 kPa	0.3 kPa	0.34 kPa	0.34 kPa
Warranty	Frame 3 years, Tarp 2 years + 1 year prorated protection.	Frame 3 years, Tarp 2 years + 1 year prorated protection.	Frame 3 years, Tarp 2 years + 1 year prorated protection.	Frame 3 years, Tarp 2 years + 1 year prorated protection.
