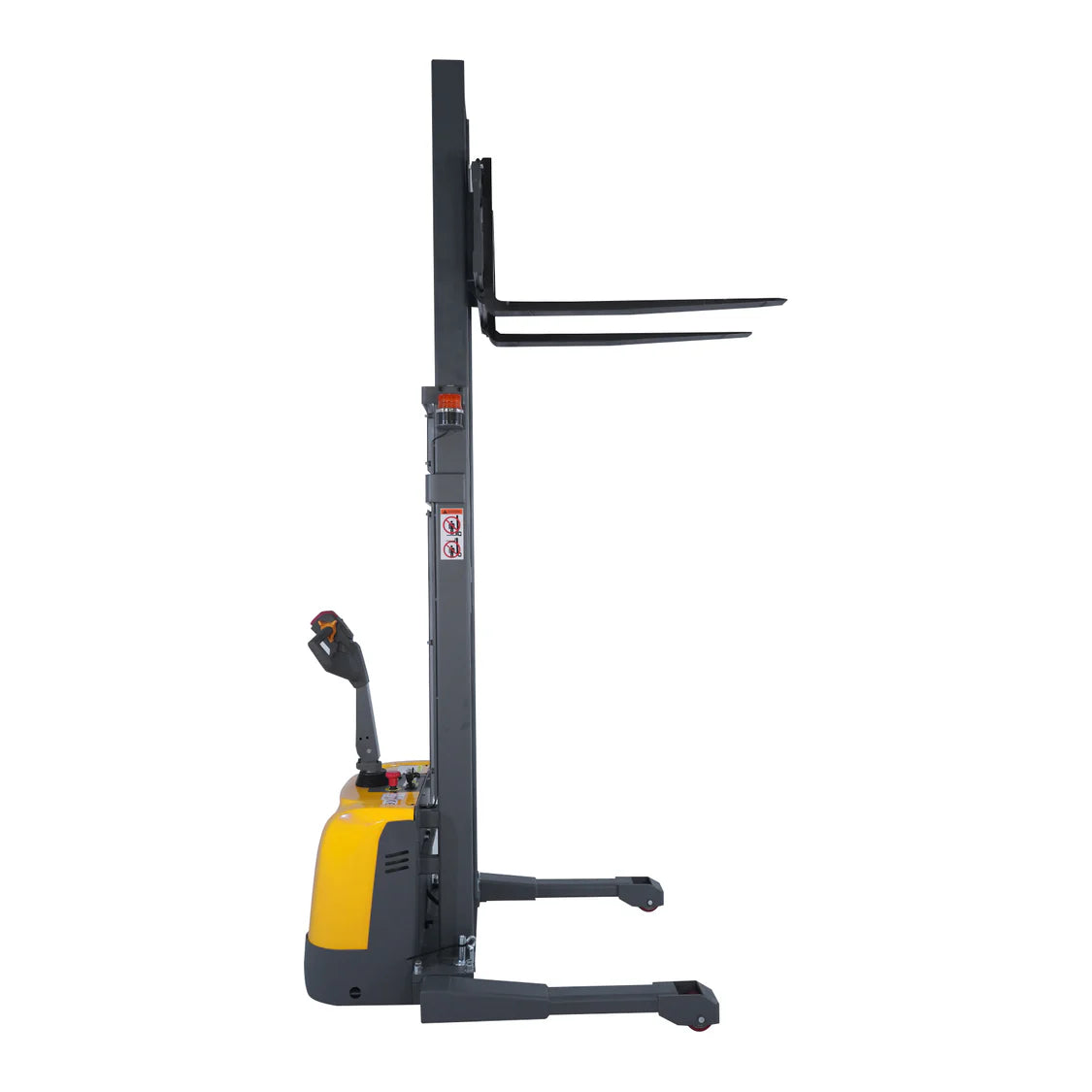

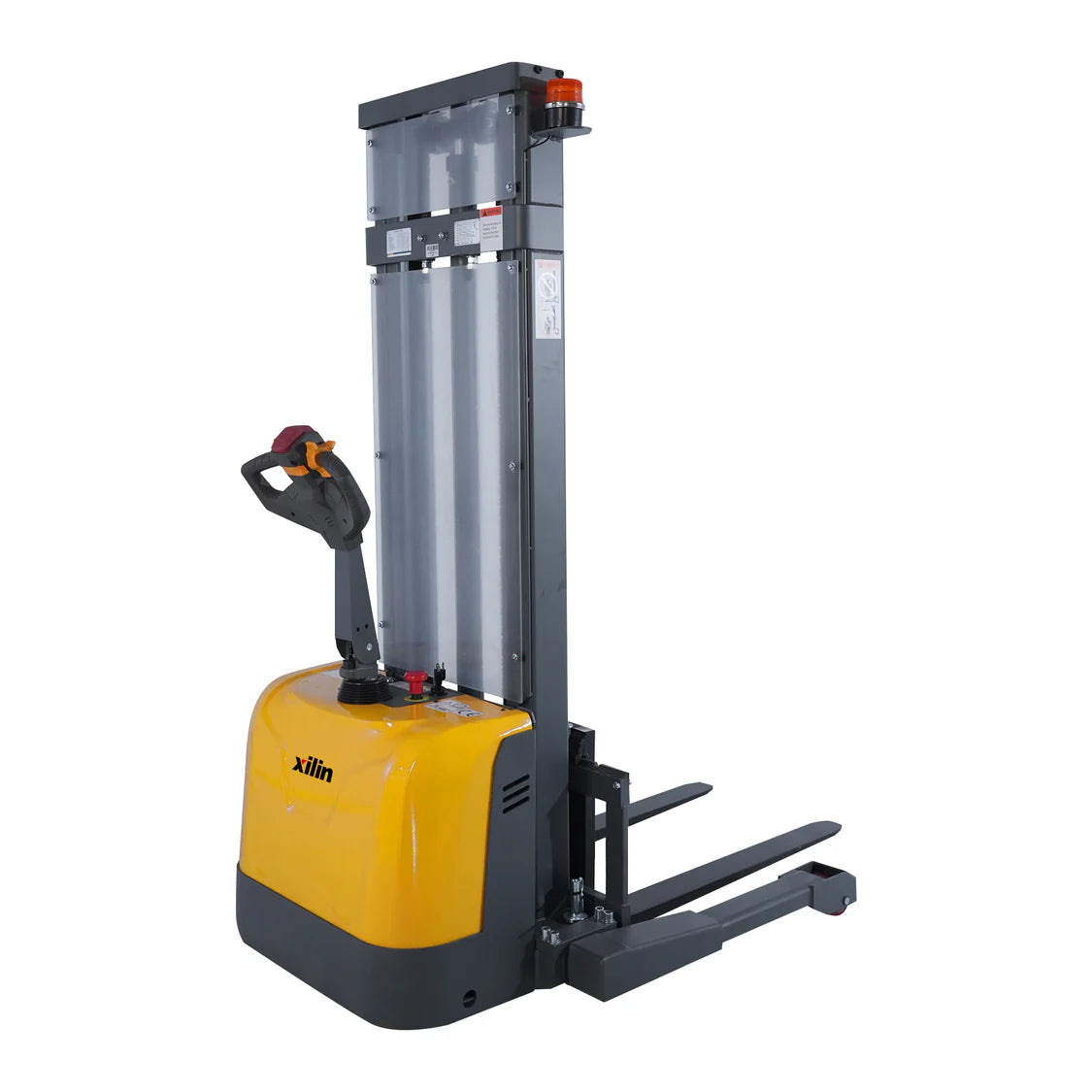

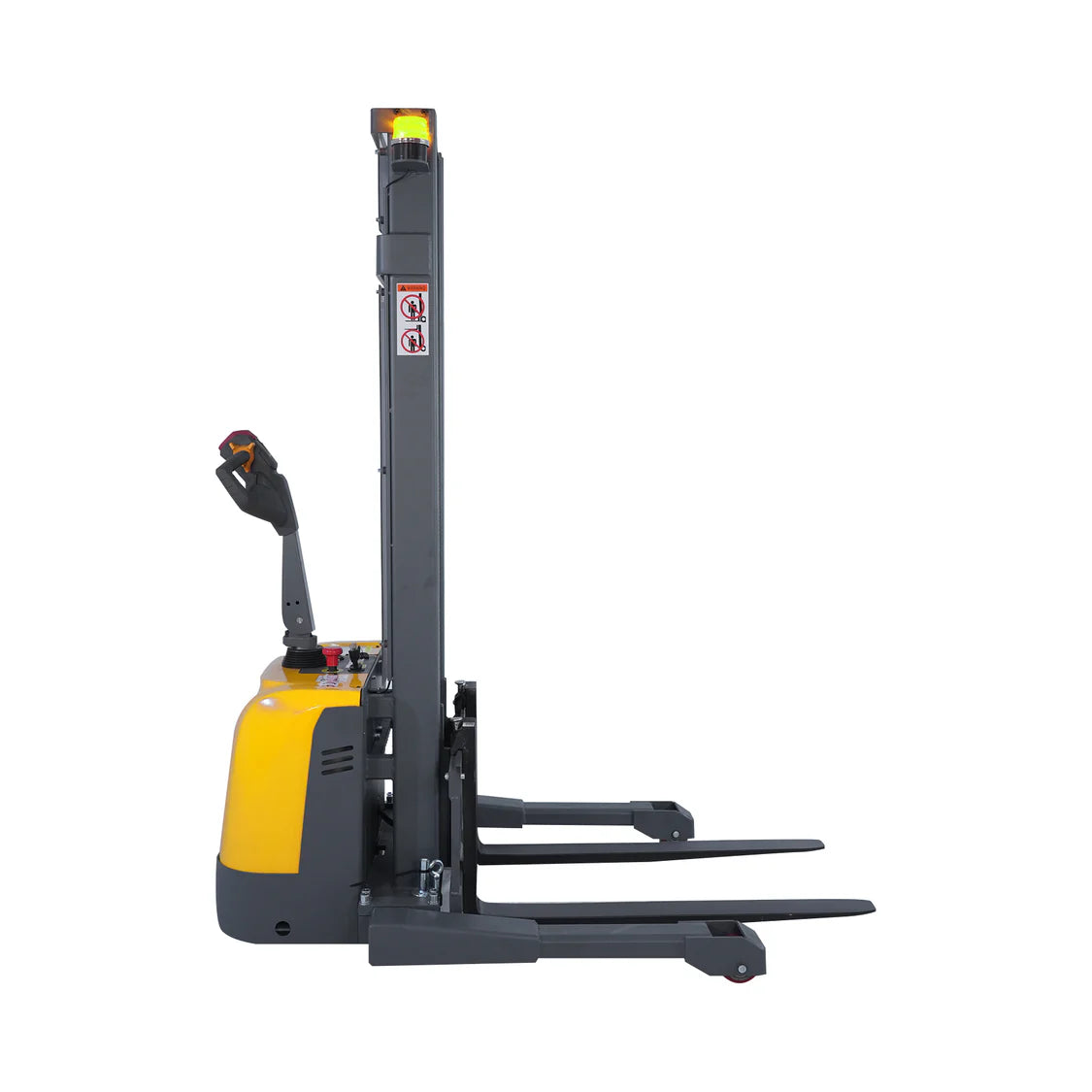

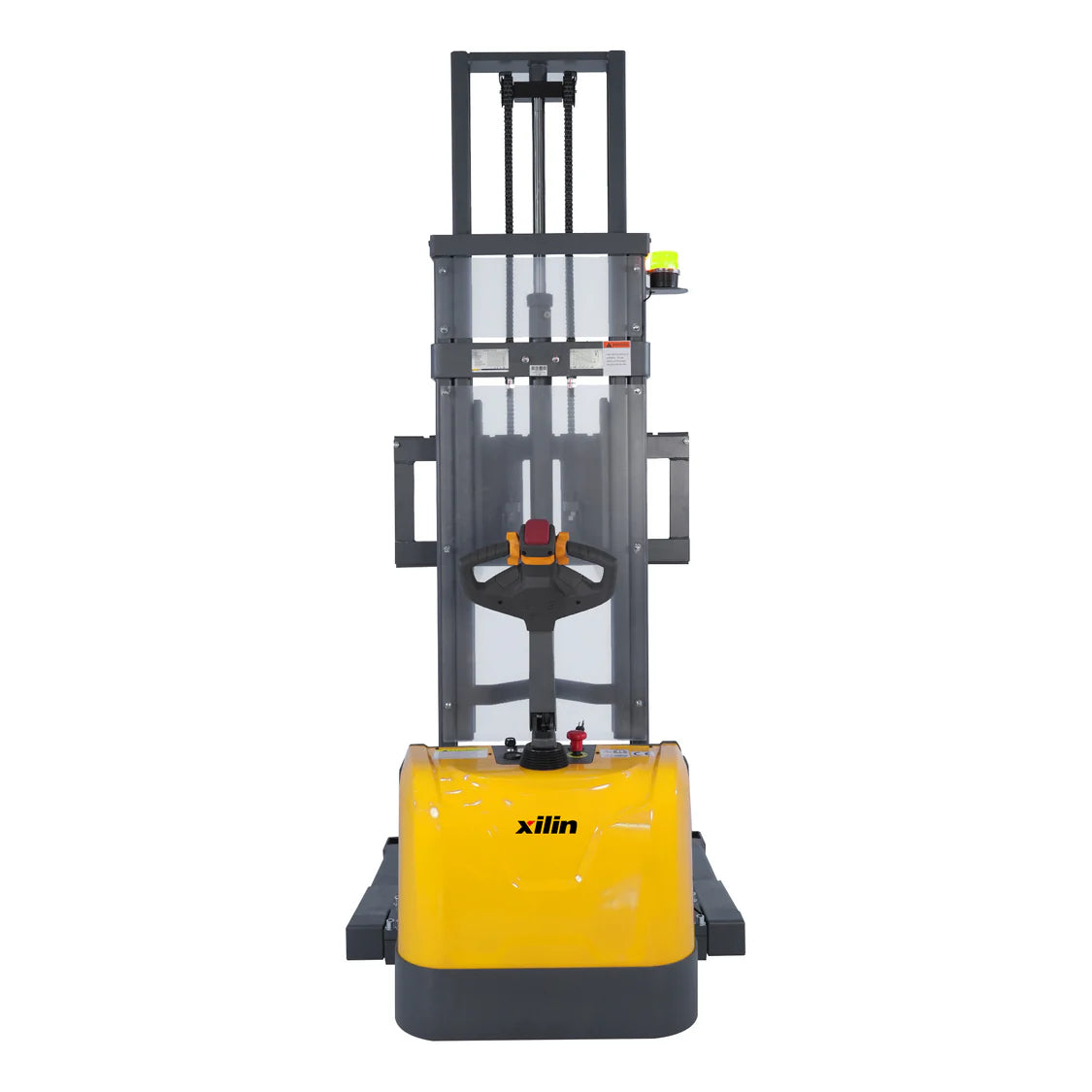

Xilin A-3050 Straddle Electric Stacker 3300lbs 98''

Only 4 left
SKU: XL-CTD15R-EN-98
No reviews
$6,450.00

Please do not use for long periods of time in low-temperature environments.

1-800-765-0877
Description Features Specifications Shipping Manual Reviews



The Xilin A-3050 Straddle Electric Stacker delivers efficient material handling for warehouses and distribution centers. With a 3300 lbs capacity and 98-inch lift height, it handles mid-range stacking tasks while minimizing operator fatigue. The straddle design provides stability on uneven floors and tight spaces where traditional forklifts struggle. Electric operation reduces emissions and operating costs compared to fuel-powered alternatives, making it ideal for indoor facilities. Durable construction and responsive controls ensure reliable daily performance in demanding industrial environments.



The Xilin A-3050 Straddle Electric Stacker delivers efficient material handling for warehouses and distribution centers. With a 3300 lbs capacity and 98-inch lift height, it handles mid-range stacking tasks while minimizing operator fatigue. The straddle design provides stability on uneven floors and tight spaces where traditional forklifts struggle. Electric operation reduces emissions and operating costs compared to fuel-powered alternatives, making it ideal for indoor facilities. Durable construction and responsive controls ensure reliable daily performance in demanding industrial environments.

  •  Modern Modular Design – Unified appearance with durable steel covers and family-style design across models.
  •  Compact for Tight Areas – Replaces manual jacks in truck loading, retail, and warehouse use.
  •  Top-Mounted Drive Motor – Keeps motor high and safe from dust, oil, and water for longer life.
  •  Easy-Maintenance Layout – Modular design with liquid-lubricated gearbox for quiet, efficient operation.
  •  Stable 3-Point Chassis – Low center of gravity with two front wheels and center-mounted drive wheel.
  •  Built-In Charger – No extra equipment required—just plug in and recharge from any standard outlet.

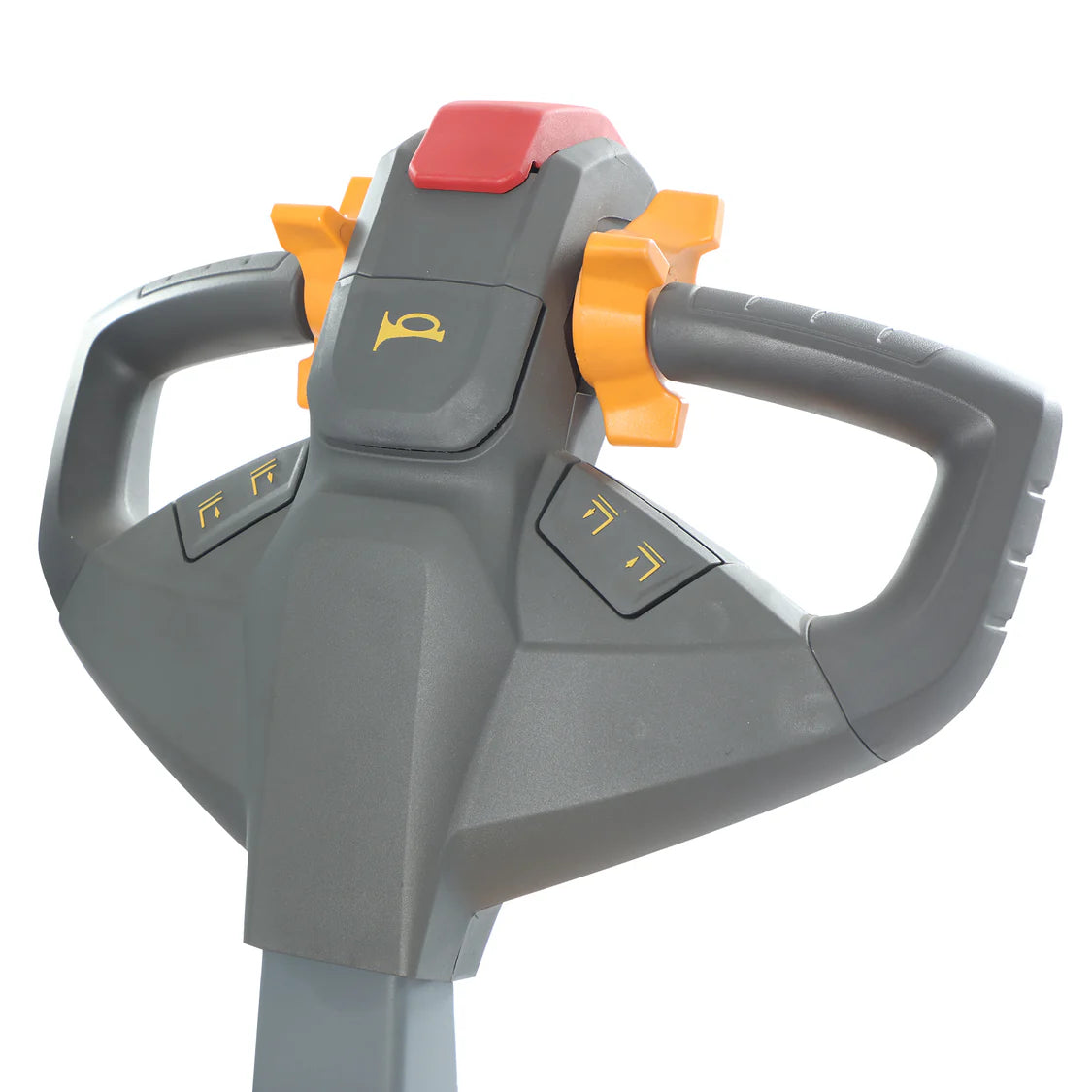

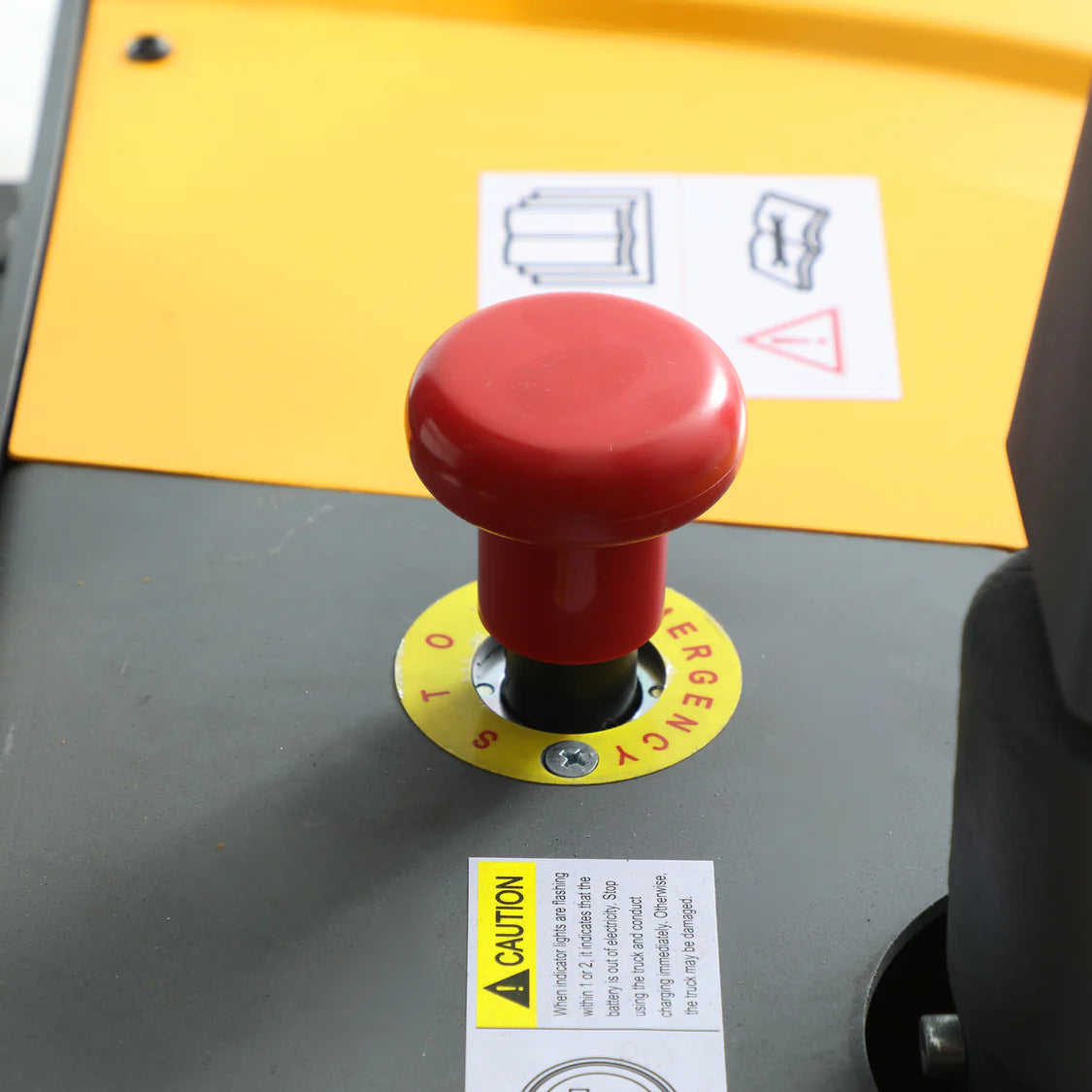

  •  Explosion-Proof Safety Valve – Prevents free-fall in case of hydraulic failure during lifting.🎛 All-in-One Control Handle – Electric lift/lower, throttle, horn, turtle speed, and emergency functions.

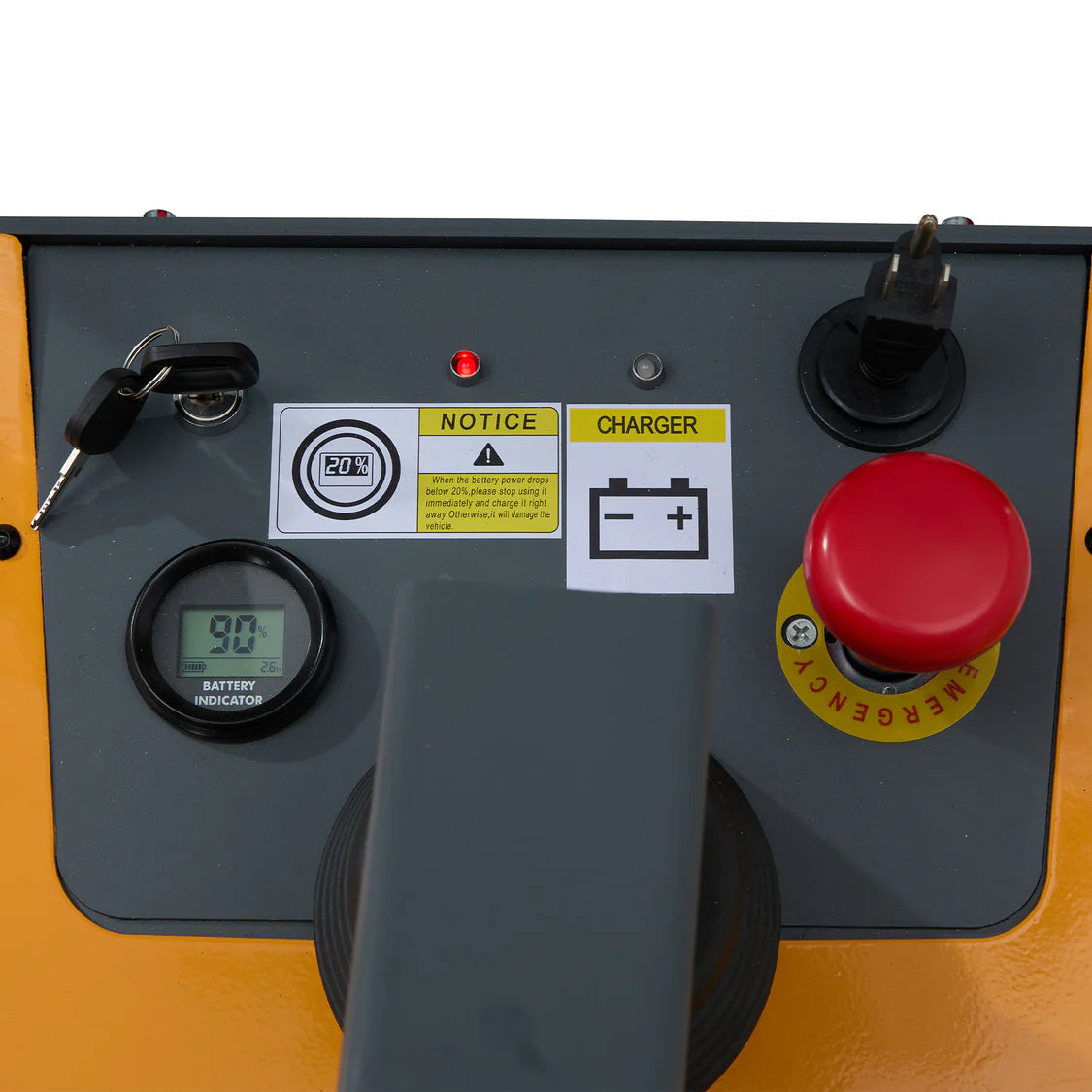

  •  Reliable Battery System – 24V/100Ah battery with 10-hour charge time and digital dashboard display.
  •  Customizable Parameters – Service engineers can adjust driving speed and acceleration via controller.
  •  Full-System Electrical Protection – Each key component protected by its own fuse for long-term reliability.
 Load Capacity 3,300 lbs
 Load Center 23.6"
 Turning Radius 53"
 Aisle Width 87.8"

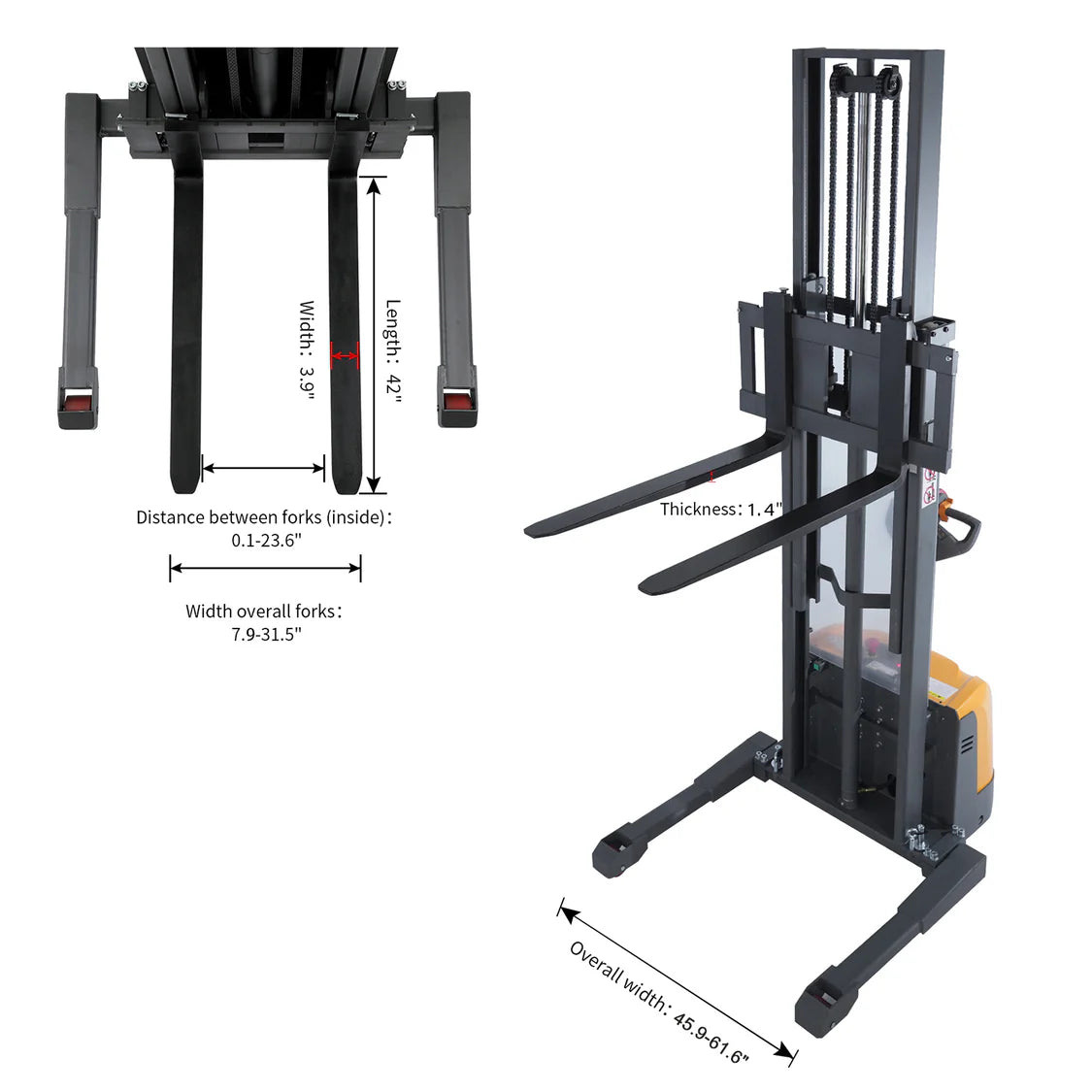

 Fork Dimensions 42" L × 7.9–31.5" W × 1.4" Thick
 Inside Fork Width 0.1"–23.6"
 Overall Width 45.9"–61.6"
 Overall Length 68.9"
 Max Lifting Height 98"
 Mast Height (Lowered/Extended) 74.6" / 123.8"
 Fork Lowered Height 2.8"
 Battery 24V / 100Ah
 Charger 24V / 10A Built-in
 Travel Speed (L/U) 2.8 / 3.1 mph
 Lifting Speed (L/U) 3.5 / 5.9 inch/s
 Lowering Speed (L/U) 5.9 / 4.3 inch/s
 Service Weight 1350 lbs
Package Dimensions Package Weight

No manual files available for this product.
