Home / Shelter / Storage Shelter / Gold Mountain Single Truss Round Storage Shelter W30'xL40'xH15' 4FT

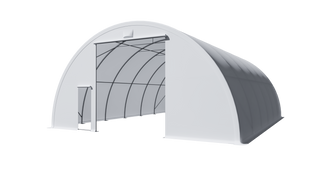

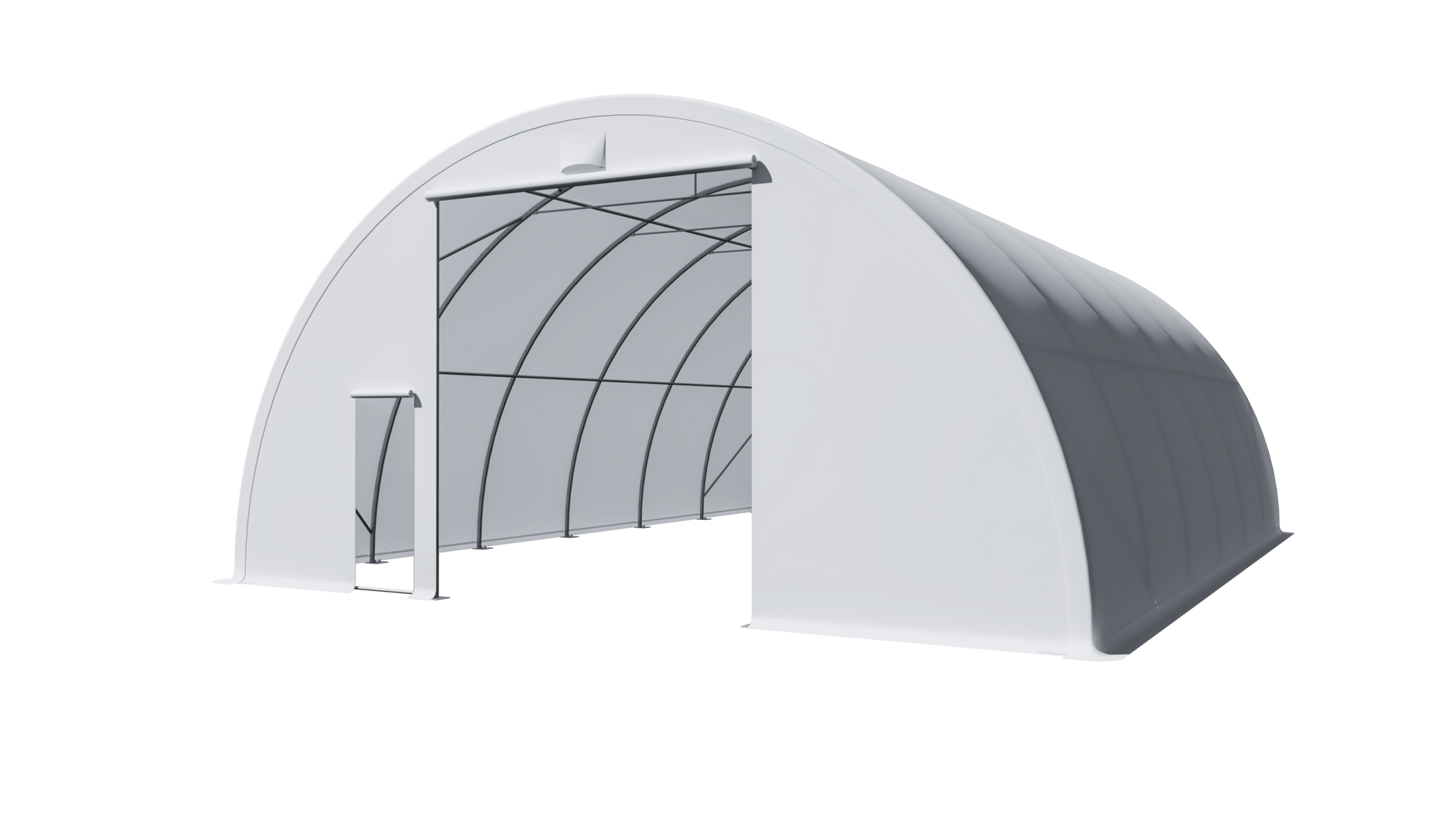

Gold Mountain Single Truss Round Storage Shelter W30'xL40'xH15' 4FT

In stock
SKU: SS-SRM-3040-500
No reviews
$9,299.00
Material

Warranty

Frame 3 years, Tarp 2 years + 6 year prorated protection.

View details

Product details
  • Usable Footprint: 1,200 ft² (111 m²) of covered floor with a 15' (4.57 m) peak height

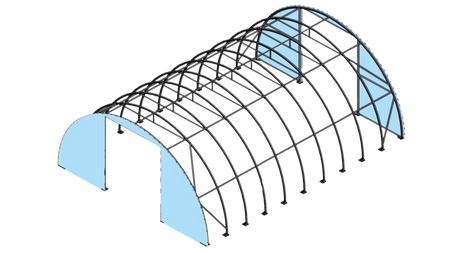

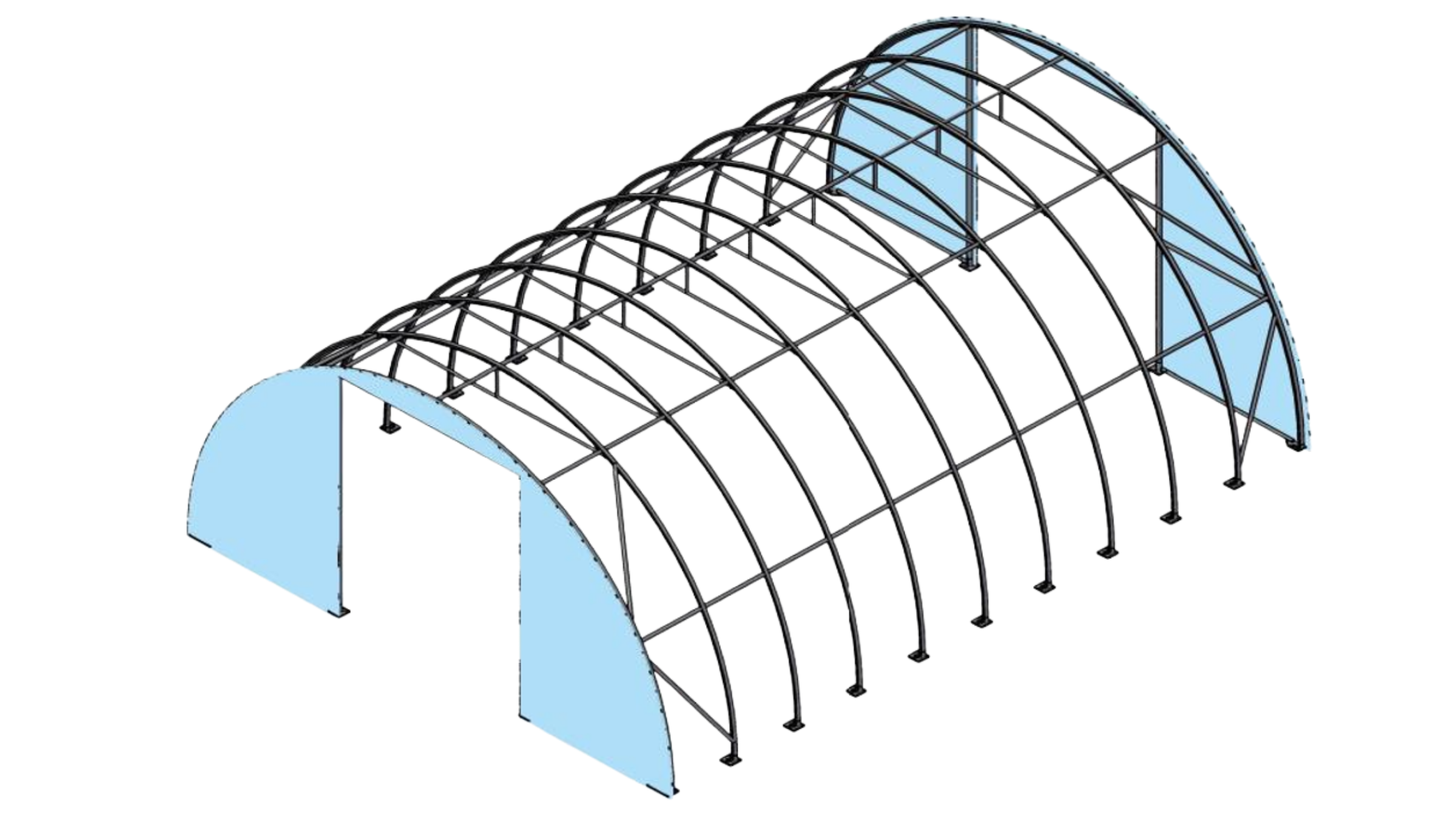

  • Galvanized Steel Frame: Single-truss frame with 11 main arches at 4' (1.22 m) spacing
  • Fire-Retardant Fabric: Water- and UV-resistant 500g PVC; a tested sample met DIN 4102-1 Class B2
  • Snow and Wind Rated: Rated for a 37.6 psf (1.8 kN/m²) snow load and 7.1 psf (0.34 kN/m²) wind load

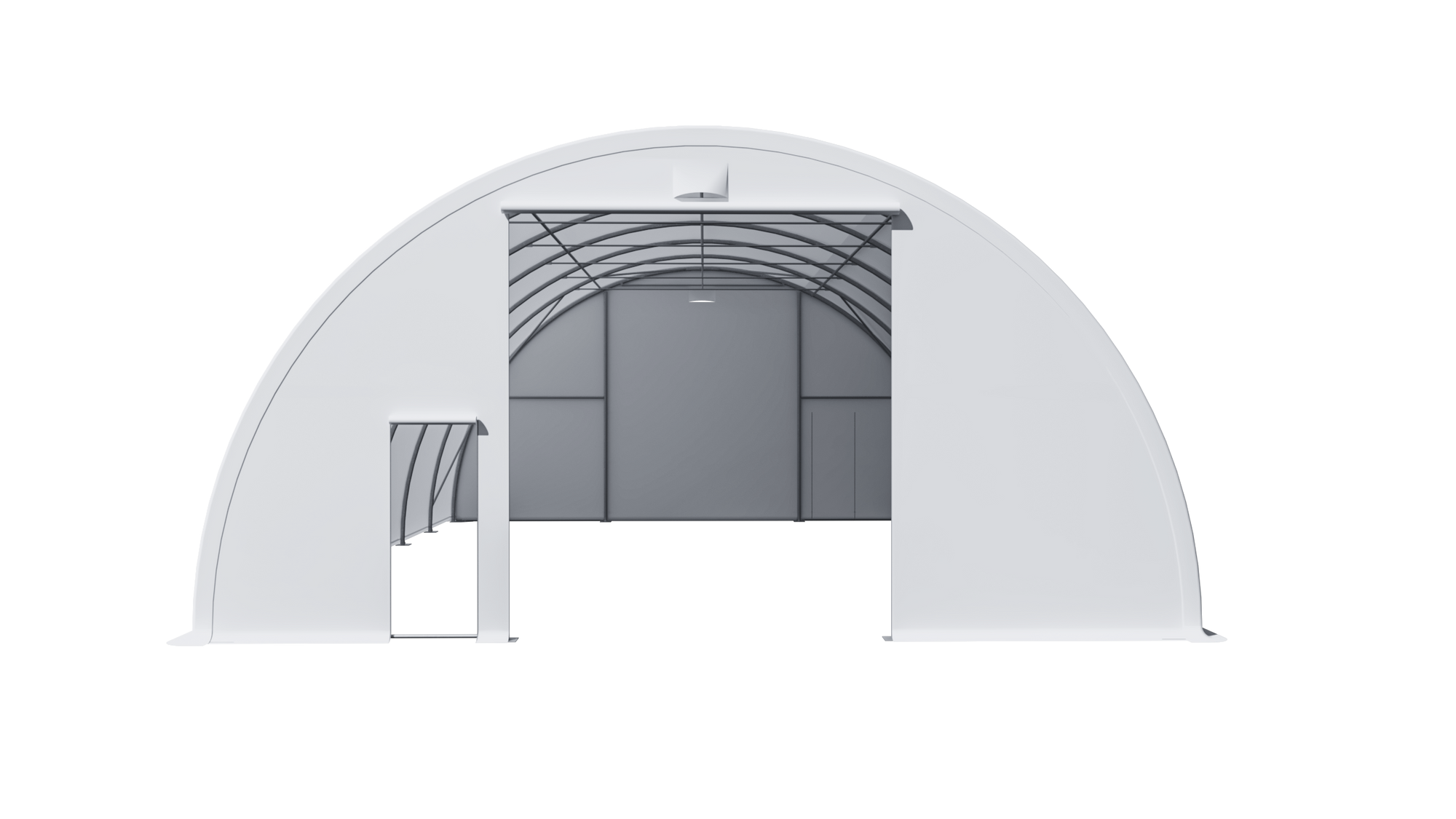

  • Large Door Opening: 11.5' × 11.5' (3.51 × 3.51 m) door opening for drive-in access
  • Close Arch Spacing: 4' (1.22 m) arch spacing adds frame support along the shelter length

Product details

  • Usable Footprint: 1,200 ft² (111 m²) of covered floor with a 15' (4.57 m) peak height
  • Galvanized Steel Frame: Single-truss frame with 11 main arches at 4' (1.22 m) spacing
  • Fire-Retardant Fabric: Water- and UV-resistant 500g PVC; a tested sample met DIN 4102-1 Class B2
  • Snow and Wind Rated: Rated for a 37.6 psf (1.8 kN/m²) snow load and 7.1 psf (0.34 kN/m²) wind load
  • Large Door Opening: 11.5' × 11.5' (3.51 × 3.51 m) door opening for drive-in access
  • Close Arch Spacing: 4' (1.22 m) arch spacing adds frame support along the shelter length
Overall Size (W × L × H)30' × 40' × 15' (9.14 × 12.19 × 4.57 m)
Door Size (W × H)11.5' × 11.5' (3.51 × 3.51 m)
Snow Load1.8 kN/m² (37.6 psf)
Wind Load0.34 kN/m² (7.1 psf)

Product manuals and documents

304015R_306415R_308415R_EN_V2.pdf

View Download

Comparison

Attribute
Gold Mountain Single Truss Round Storage Shelter W30'xL40'xH15'
Basic 7 arches
W30'xL40'xH15' $5,299.00
Current
Gold Mountain Single Truss Round Storage Shelter W30'xL40'xH15' 4FT
Heavy Duty 11 arches
W30'xL40'xH15' $9,299.00
Gold Mountain Single Truss Peak Storage Shelter W30'xL40'xH15' 4FT
Heavy Duty 11 arches
W30'xL40'xH15' $9,799.00
Double Truss Peak M Model Storage Shelter W30'xL40'xH20'
Heavy Duty 5 arches
W30'xL40'xH20' $14,999.00
Door size W11.5' x H11.5' W11.5' x H11.5' W11.3' x H11.3' W14.0' x H14.0'
Snow load 1.6 kPa 1.8 kPa 1.8 kPa 2.0 kPa
Wind load 0.3 kPa 0.34 kPa 0.34 kPa 0.37 kPa
Warranty Frame 3 years, Tarp 2 years + 1 year prorated protection. Frame 3 years, Tarp 2 years + 6 year prorated protection. Frame 3 years, Tarp 2 years + 1 year prorated protection. Frame 8 years, Tarp 2 years + 6 year prorated protection.
