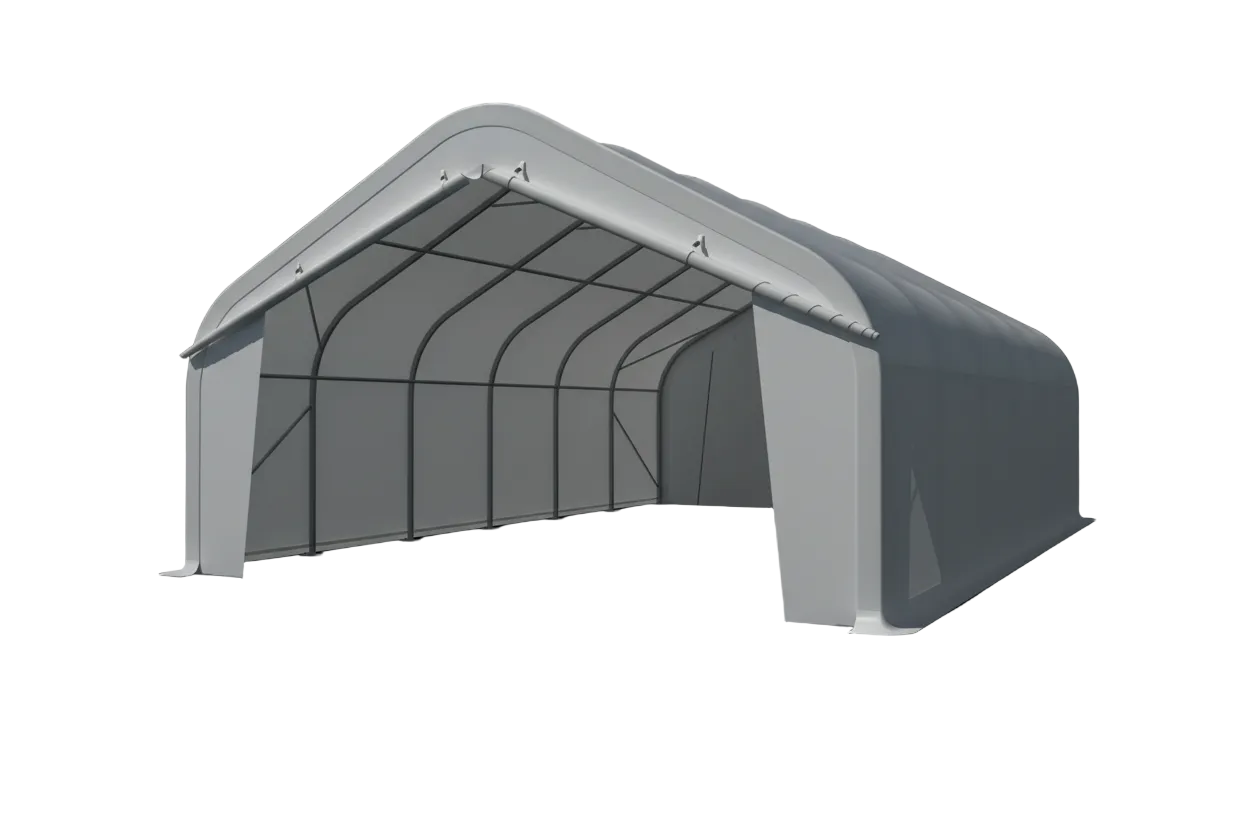

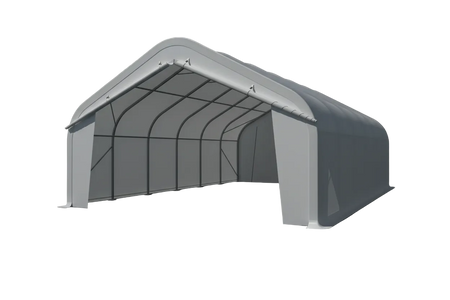

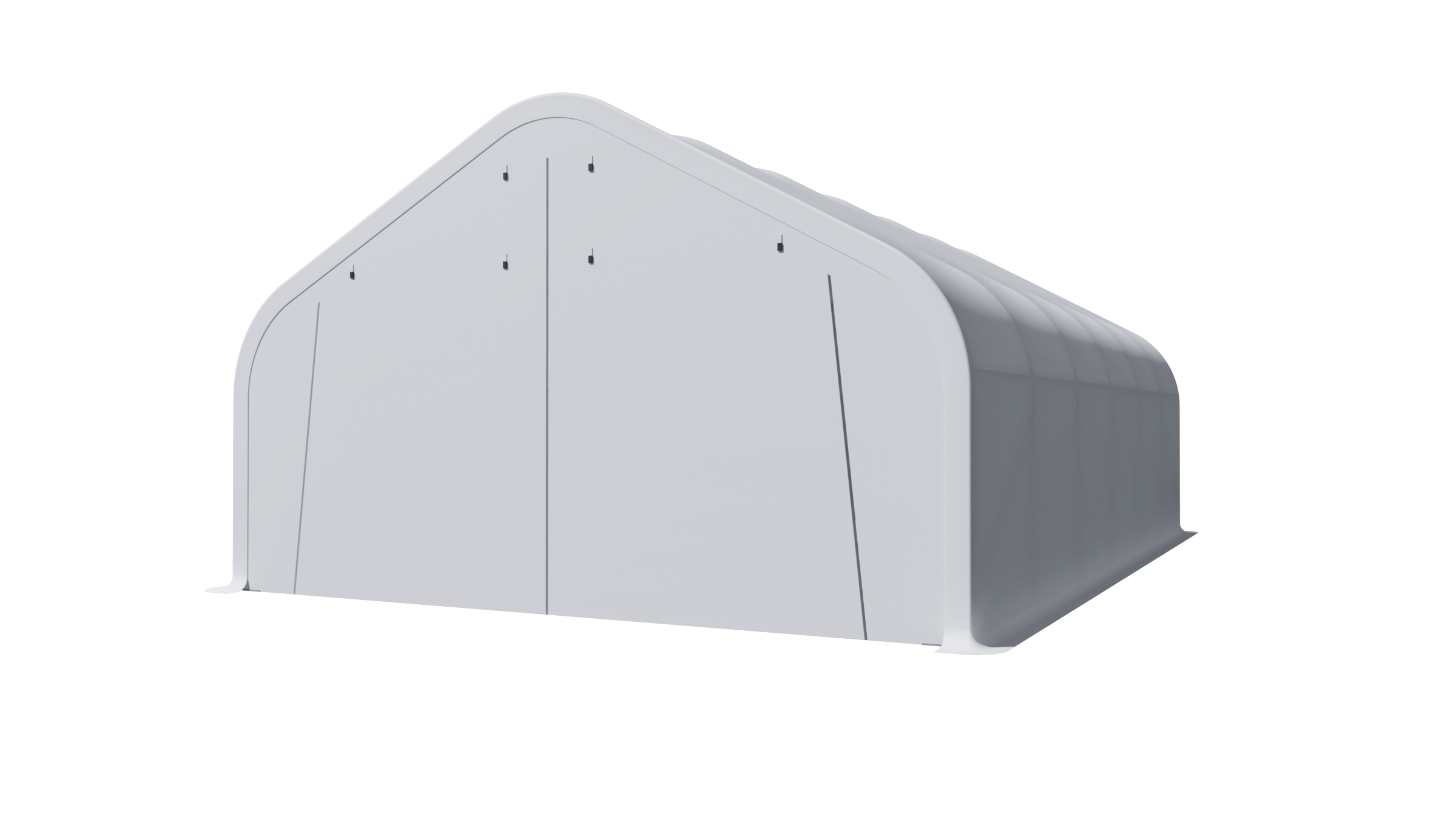

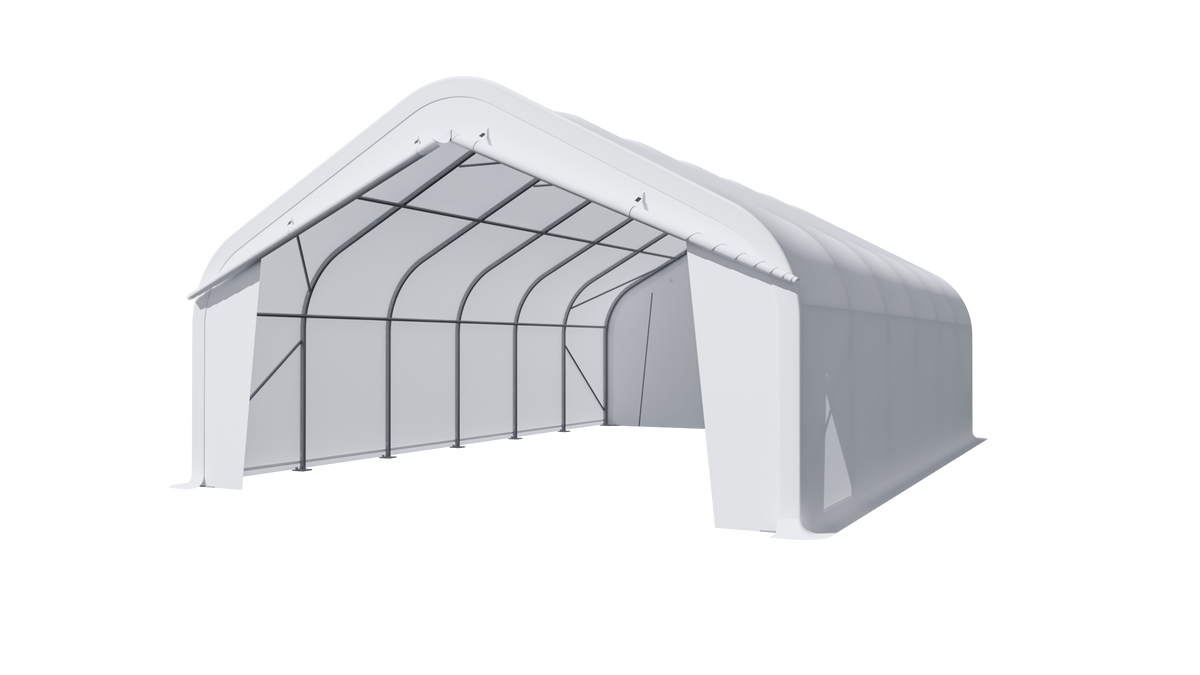

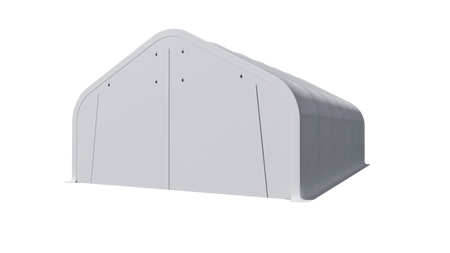

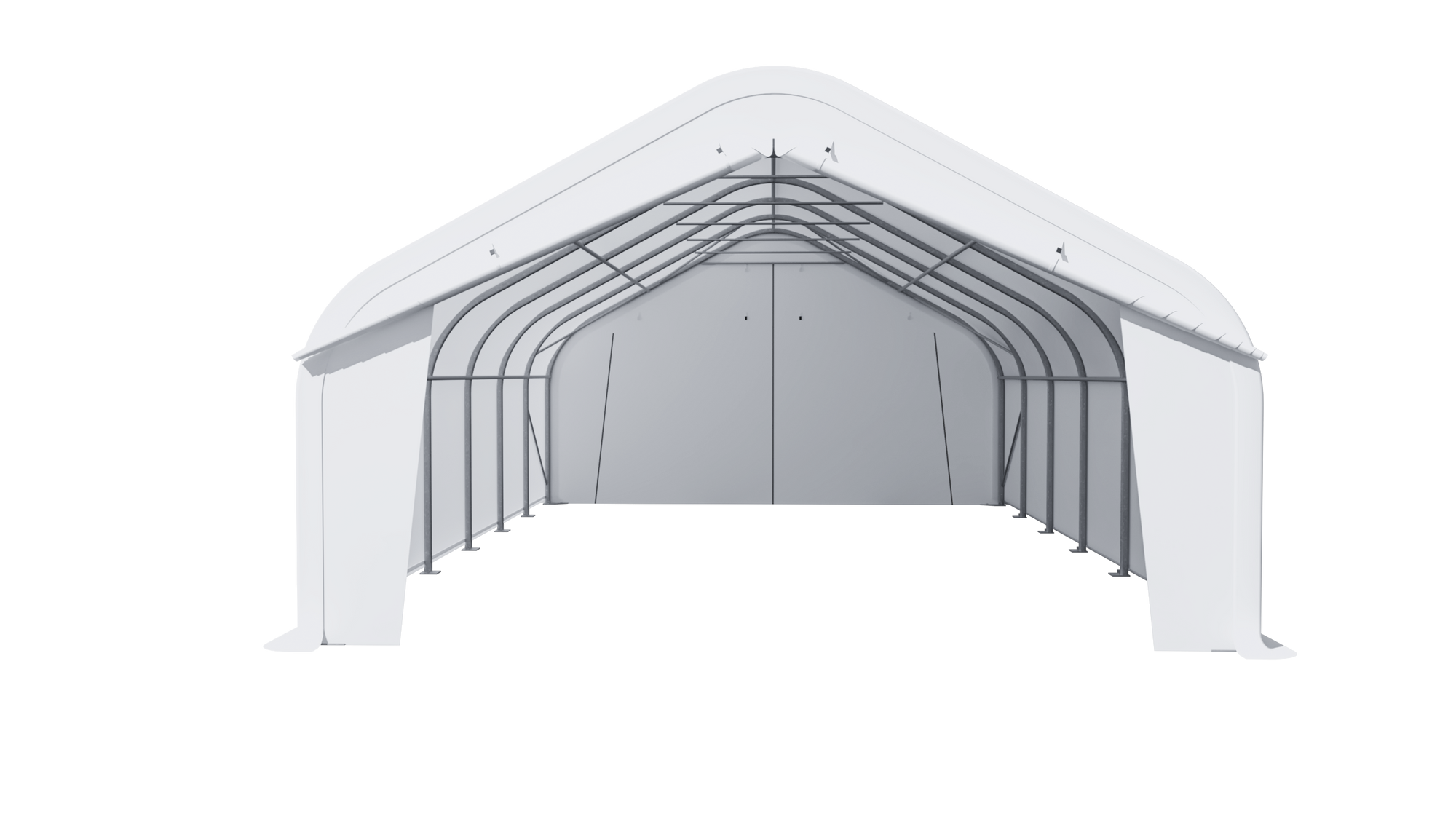

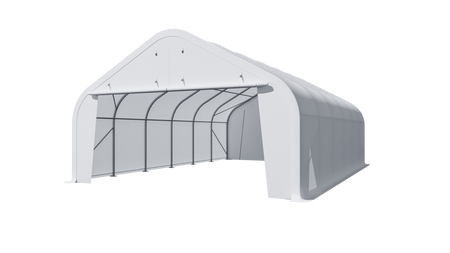

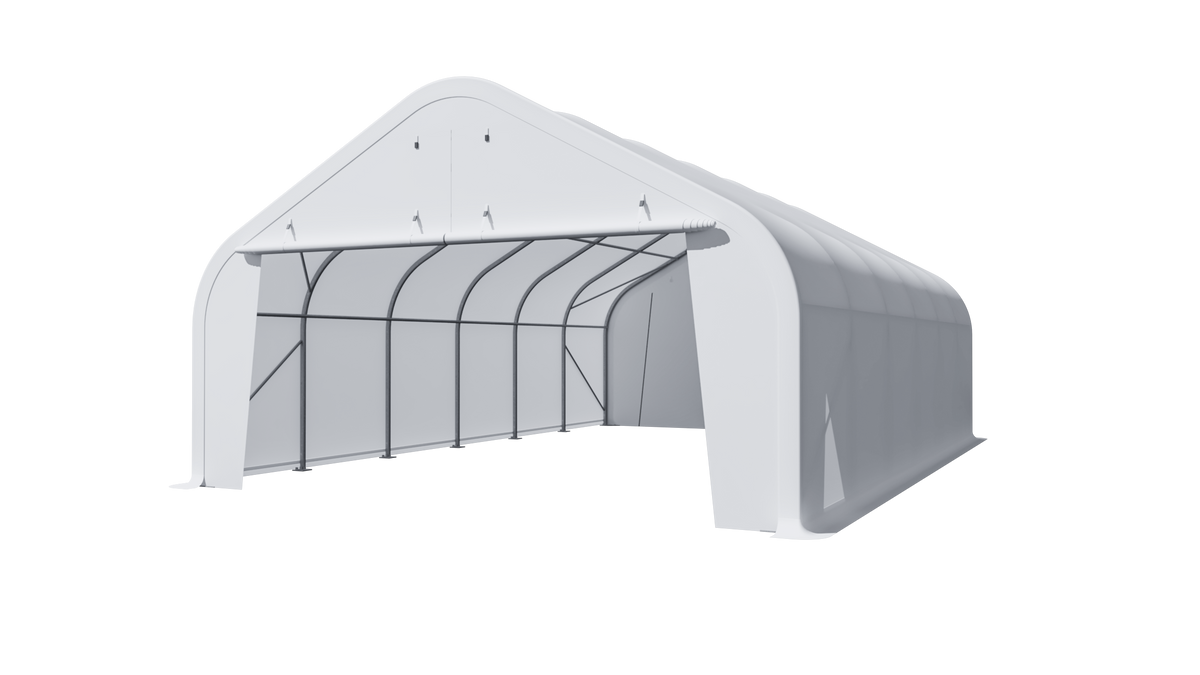

Gold Mountain Single Truss Peak Storage Shelter W20'xL30'xH12'

Name: Gold Mountain Single Truss Peak Storage Shelter W20'xL30'xH12'
Brand: Gold Mountain
SKU: SS-SP2030-420-5ft
Price: 2999.0 CAD
Availability: OutOfStock

Available soon

SKU: SS-SP2030-420-5ft

No reviews

$2,999.00

Material 420g PVC 5ft Arch space

Product variants

Preorder

Warranty

Frame 3 years, Tarp 2 years + 1 year prorated protection.

View details

Replacements

Parts

Product details

Dimensions: 20' × 30' × 12'

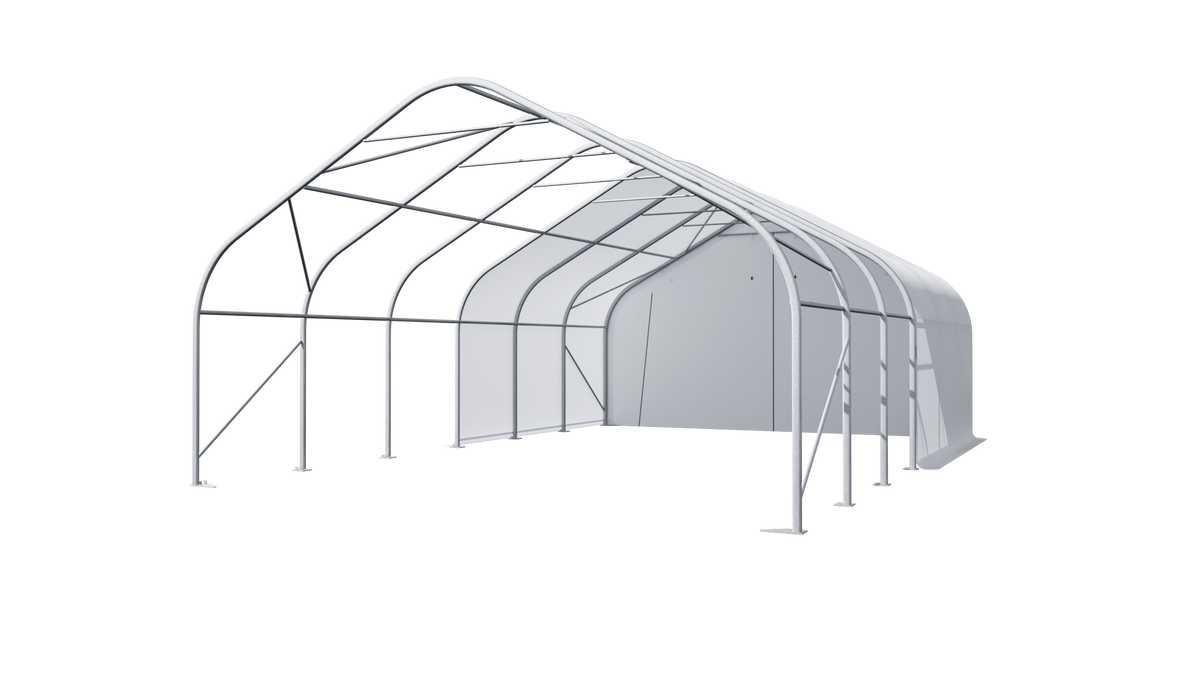

Structure: Single-truss galvanized-steel frame
Roof Profile: Peak
Cover Options: 420g PVC
Arch Configuration: 7 main arches at 5 ft spacing
Performance Level: Heavy Duty
Typical Applications: Equipment, vehicle, machinery, material, and seasonal inventory storage
Installation: Use a suitable foundation and anchoring system; maintain cover tension

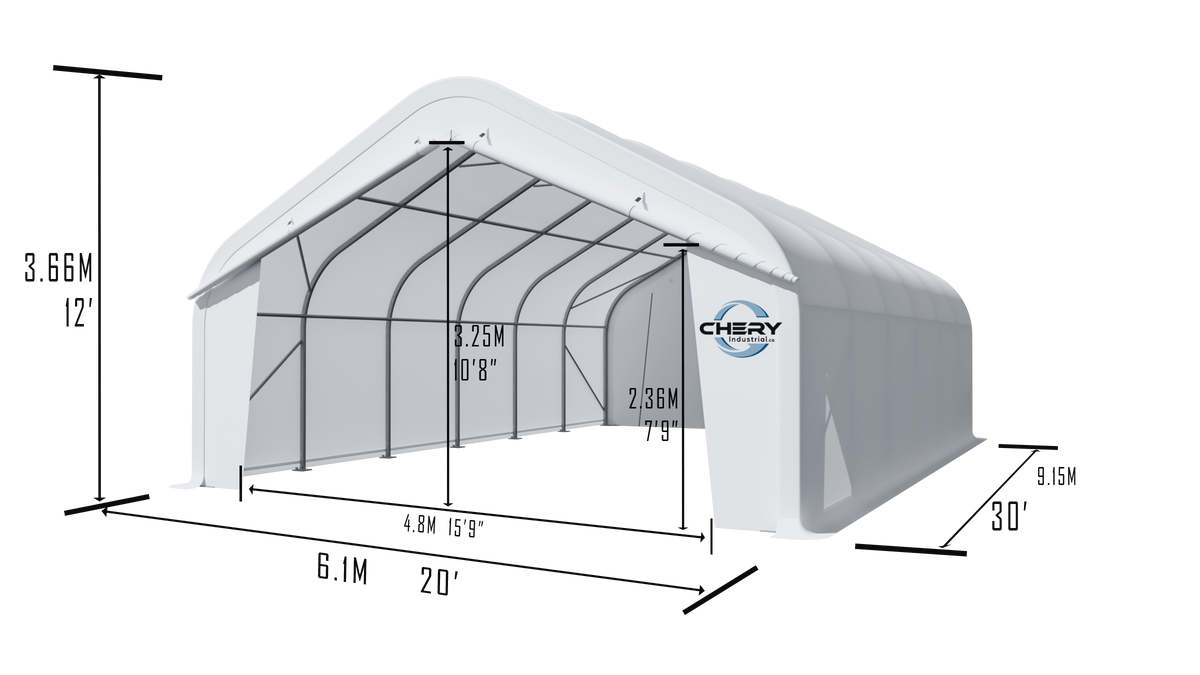

Product Size	6.1m9.15m3.66m/20.01'30.02'12.01'
Floor Area	55.8m^2/600.63ft^2
Maximum Height	3.66m/12.01'
Frame Material	Galvanized Steel
Covering Material	PE/PVC
Main Arch Tube Dimensions	70.0mm42.0mm/3"2"
Main Arch Tube Thickness	1.5mm/0.06"
Main Arch Space	1.525m1.83m/5.0'6.0'
Purlin Tube Diameter	40.0mm/1.57"
Purlin Tube Thickness	1.2mm/0.05"
Door Size	4.3m3.2m/14.11'10.5'

Product manuals and documents

202012P_203012P_204012P_5ft_EN.pdf

View Download

Product details

Dimensions: 20' × 30' × 12'
Structure: Single-truss galvanized-steel frame
Roof Profile: Peak
Cover Options: 420g PVC
Arch Configuration: 7 main arches at 5 ft spacing
Performance Level: Heavy Duty
Typical Applications: Equipment, vehicle, machinery, material, and seasonal inventory storage
Installation: Use a suitable foundation and anchoring system; maintain cover tension

Product Size	6.1m9.15m3.66m/20.01'30.02'12.01'
Floor Area	55.8m^2/600.63ft^2
Maximum Height	3.66m/12.01'
Frame Material	Galvanized Steel
Covering Material	PE/PVC
Main Arch Tube Dimensions	70.0mm42.0mm/3"2"
Main Arch Tube Thickness	1.5mm/0.06"
Main Arch Space	1.525m1.83m/5.0'6.0'
Purlin Tube Diameter	40.0mm/1.57"
Purlin Tube Thickness	1.2mm/0.05"
Door Size	4.3m3.2m/14.11'10.5'

Product manuals and documents

202012P_203012P_204012P_5ft_EN.pdf

View Download

Comparison

Attribute	Basic 6 arches W20'xL30'xH12' $2,499.00	Current Heavy Duty 7 arches W20'xL30'xH12' $2,999.00	Heavy Duty 7 arches W20'xL30'xH12' $2,999.00	Engineer Stamped 7 arches W20'xL30'xH12' $4,999.00
Door size	W14.4' x H10.7'	W15.9' x H10.8'	W14.4' x H10.7'	W14.4' x H10.7'
Snow load	1.6 kPa	1.8 kPa	1.8 kPa	2.4 kPa
Wind load	0.3 kPa	0.34 kPa	0.34 kPa	0.4 kPa
Warranty	Frame 3 years, Tarp 2 years + 1 year prorated protection.	Frame 3 years, Tarp 2 years + 1 year prorated protection.	Frame 3 years, Tarp 2 years + 1 year prorated protection.	Frame 10 years, Tarp 2 years + 6 year prorated protection.
