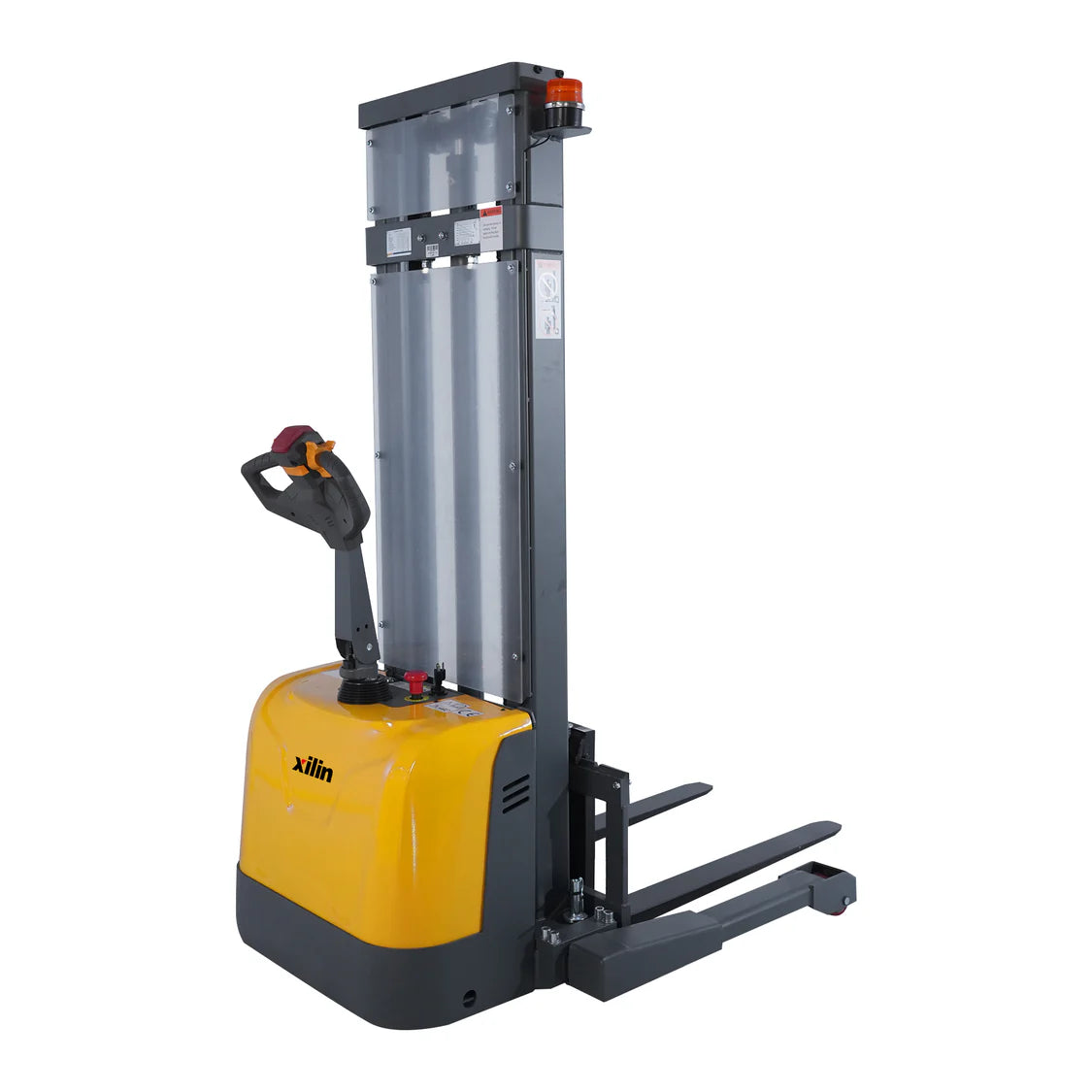

Xilin A-3050 Straddle Electric Stacker 3300lbs 98''

Only 2 left
SKU: XL-CTD15R-EN-98
No reviews
$6,450.00

Avoid prolonged use in low-temperature environments.

Charge periodically if the unit is stored or not used for a long time.

Product details
  •  Modern Modular Design – Unified appearance with durable steel covers and family-style design across models.
  •  Compact for Tight Areas – Replaces manual jacks in truck loading, retail, and warehouse use.
  •  Top-Mounted Drive Motor – Keeps motor high and safe from dust, oil, and water for longer life.
  •  Easy-Maintenance Layout – Modular design with liquid-lubricated gearbox for quiet, efficient operation.
  •  Stable 3-Point Chassis – Low center of gravity with two front wheels and center-mounted drive wheel.
  •  Built-In Charger – No extra equipment required—just plug in and recharge from any standard outlet.

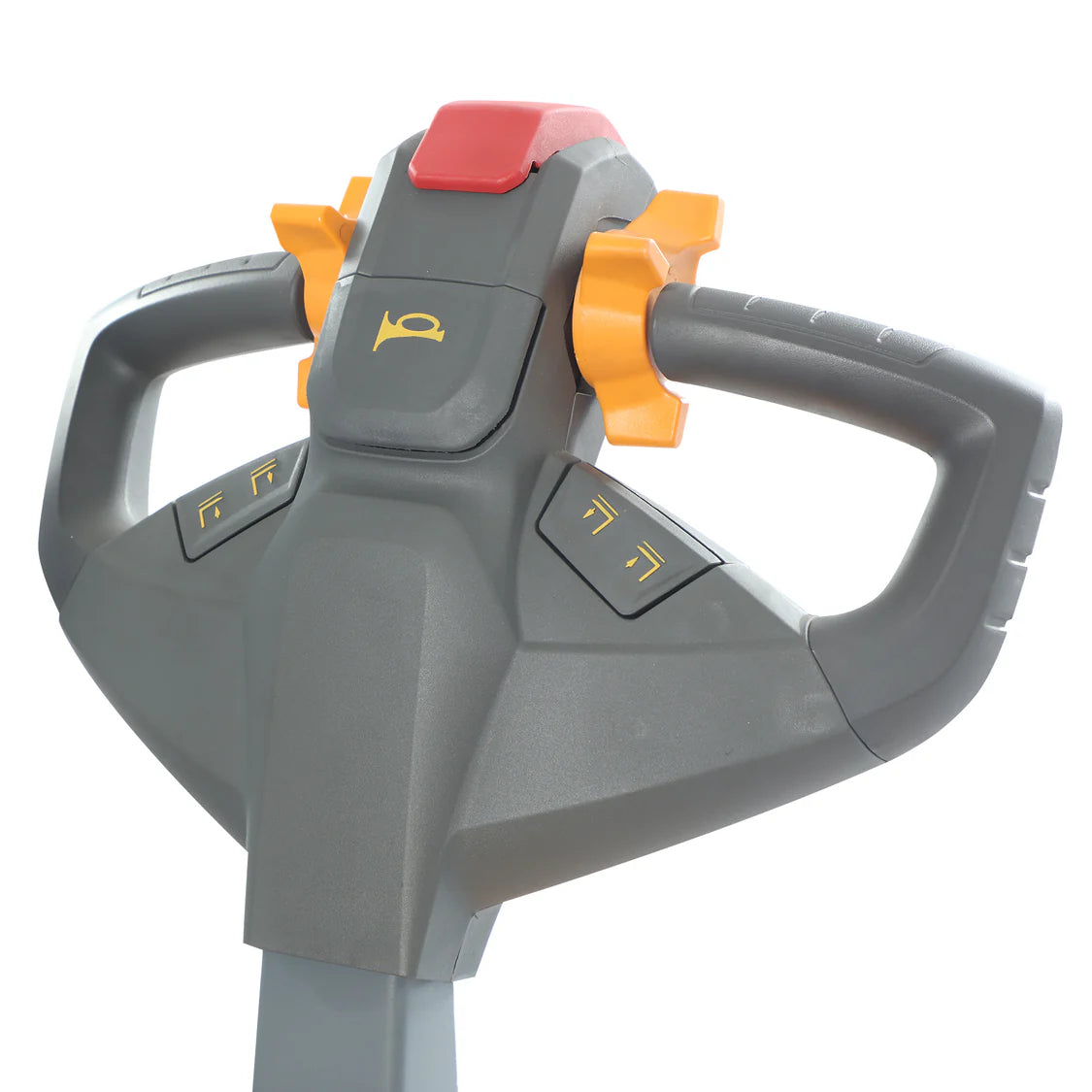

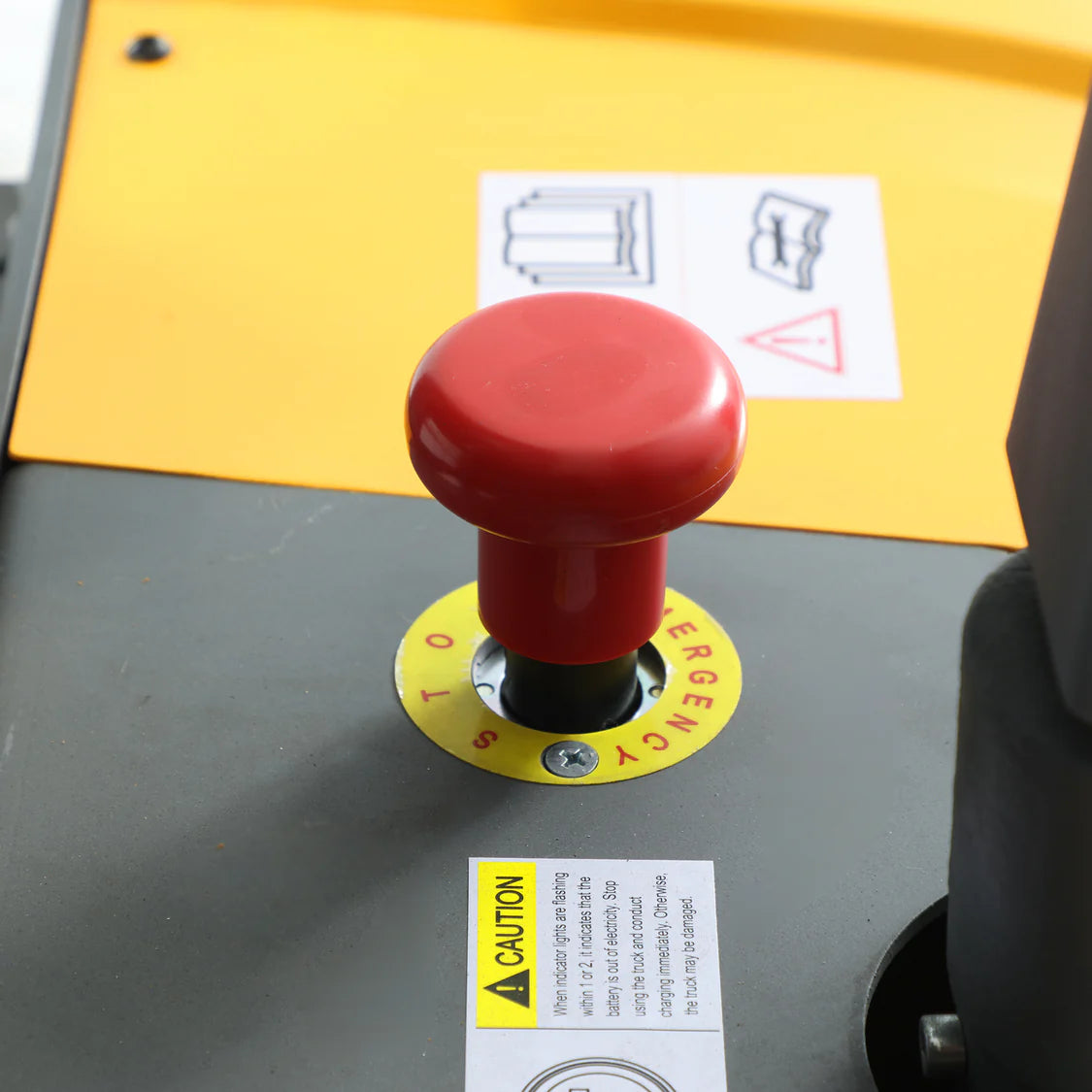

  •  Explosion-Proof Safety Valve – Prevents free-fall in case of hydraulic failure during lifting.🎛 All-in-One Control Handle – Electric lift/lower, throttle, horn, turtle speed, and emergency functions.

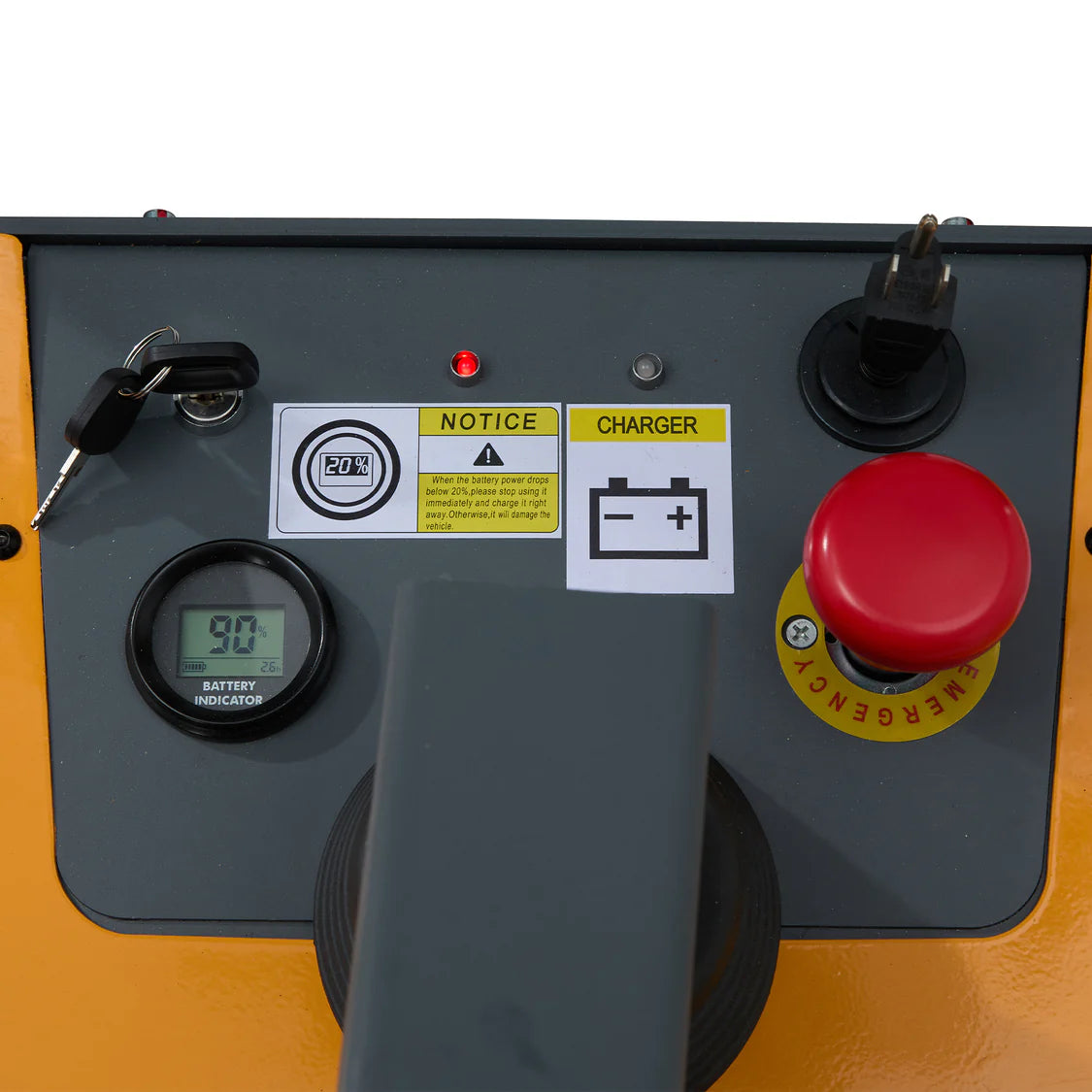

  •  Reliable Battery System – 24V/100Ah battery with 10-hour charge time and digital dashboard display.
  •  Customizable Parameters – Service engineers can adjust driving speed and acceleration via controller.
  •  Full-System Electrical Protection – Each key component protected by its own fuse for long-term reliability.

Product details

  •  Modern Modular Design – Unified appearance with durable steel covers and family-style design across models.
  •  Compact for Tight Areas – Replaces manual jacks in truck loading, retail, and warehouse use.
  •  Top-Mounted Drive Motor – Keeps motor high and safe from dust, oil, and water for longer life.
  •  Easy-Maintenance Layout – Modular design with liquid-lubricated gearbox for quiet, efficient operation.
  •  Stable 3-Point Chassis – Low center of gravity with two front wheels and center-mounted drive wheel.
  •  Built-In Charger – No extra equipment required—just plug in and recharge from any standard outlet.
  •  Explosion-Proof Safety Valve – Prevents free-fall in case of hydraulic failure during lifting.🎛 All-in-One Control Handle – Electric lift/lower, throttle, horn, turtle speed, and emergency functions.
  •  Reliable Battery System – 24V/100Ah battery with 10-hour charge time and digital dashboard display.
  •  Customizable Parameters – Service engineers can adjust driving speed and acceleration via controller.
  •  Full-System Electrical Protection – Each key component protected by its own fuse for long-term reliability.
 Load Capacity 3,300 lbs
 Load Center 23.6"
 Turning Radius 53"
 Aisle Width 87.8"

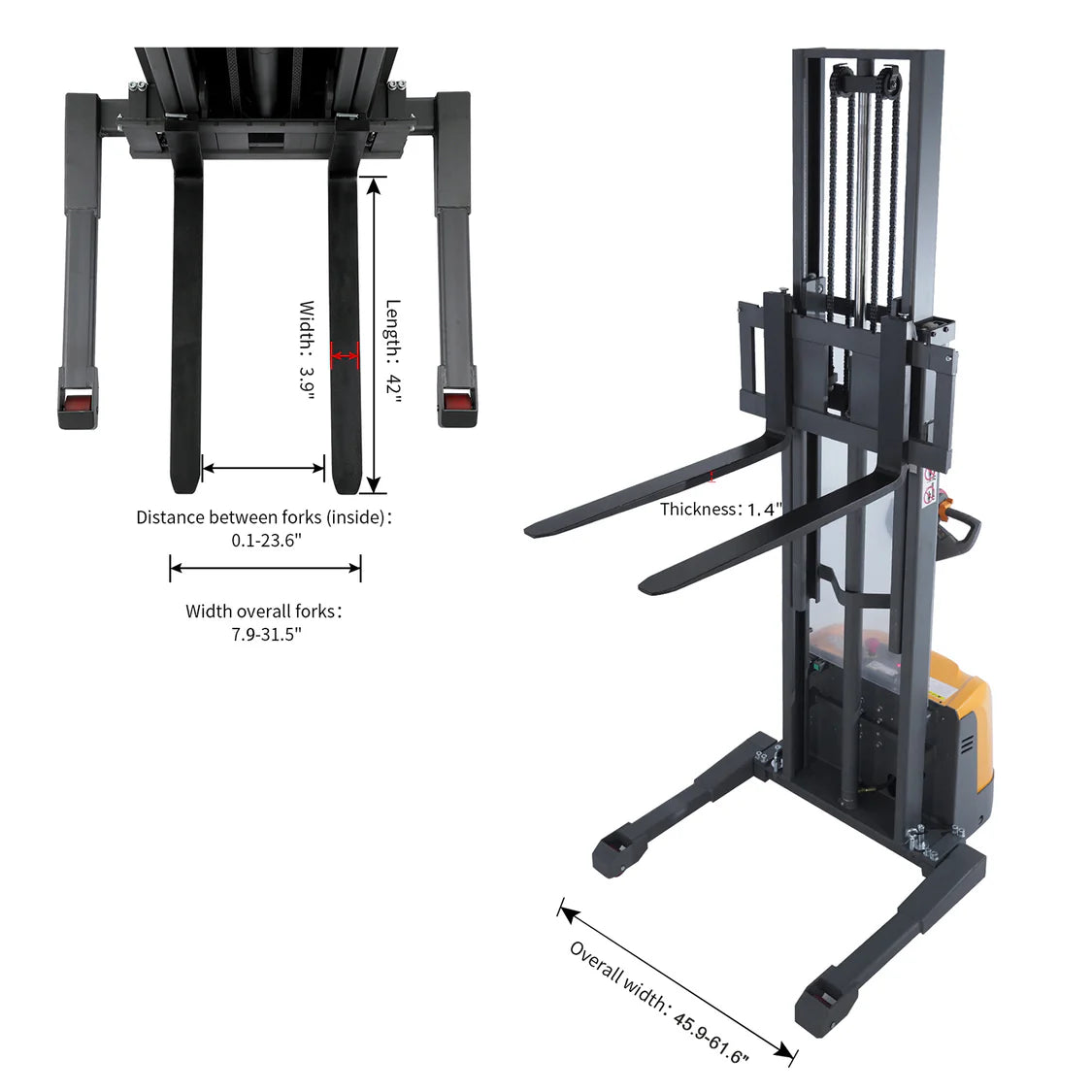

 Fork Dimensions 42" L × 7.9–31.5" W × 1.4" Thick
 Inside Fork Width 0.1"–23.6"
 Overall Width 45.9"–61.6"
 Overall Length 68.9"
 Max Lifting Height 98"
 Mast Height (Lowered/Extended) 74.6" / 123.8"
 Fork Lowered Height 2.8"
 Battery 24V / 100Ah
 Charger 24V / 10A Built-in
 Travel Speed (L/U) 2.8 / 3.1 mph
 Lifting Speed (L/U) 3.5 / 5.9 inch/s
 Lowering Speed (L/U) 5.9 / 4.3 inch/s
 Service Weight 1350 lbs

No manuals or documents are available for this product.
