Chery Industrial Canada

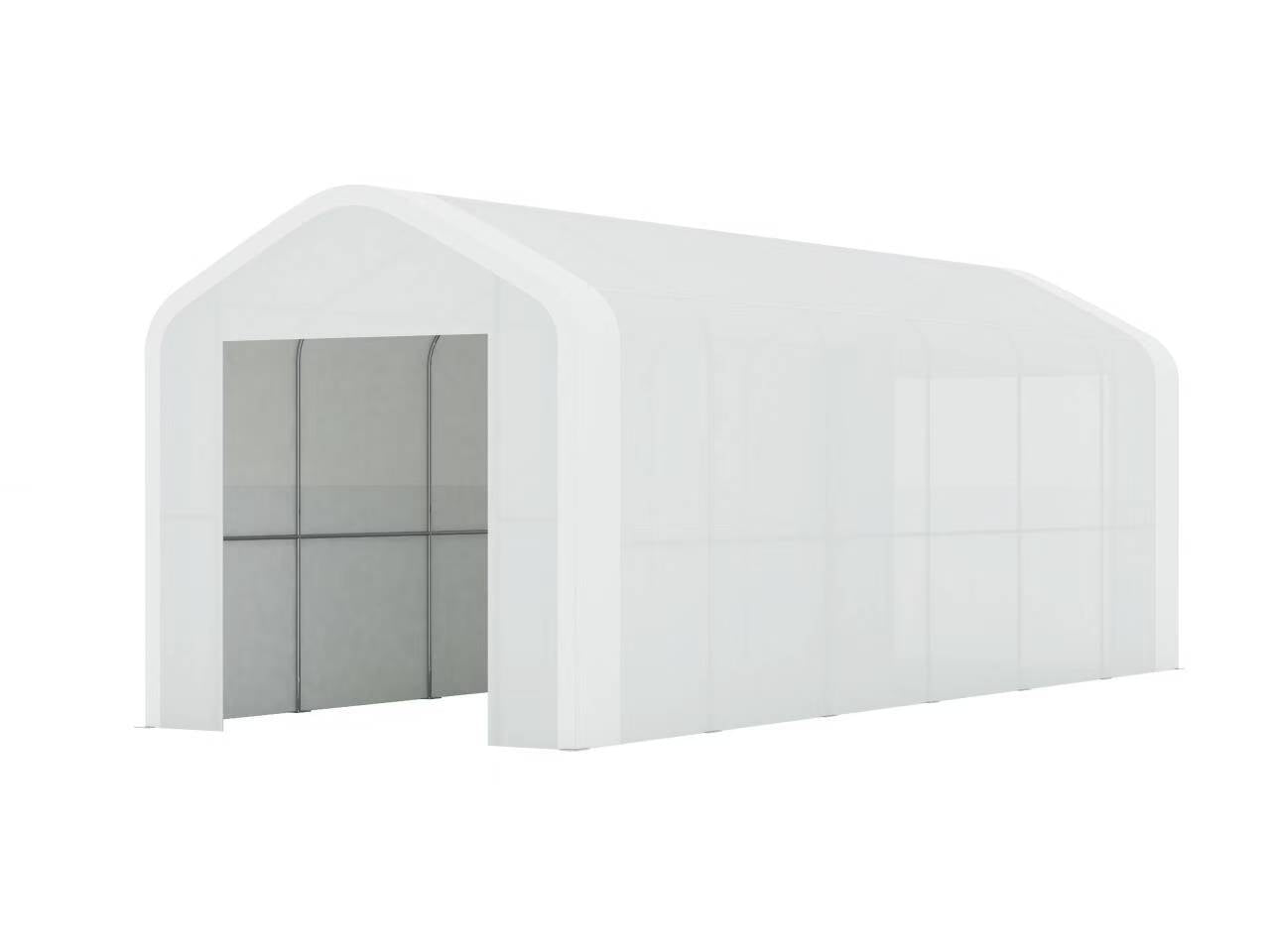

Peak Frame Storage Shelter - W18'xL30'xH17'

Name: Peak Frame Storage Shelter - W18'xL30'xH17'
Brand: Chery Industrial Canada
SKU: SS-P1830-5ft-500
Price: 4300.0 CAD
Availability: InStock

Only 2 left

SKU: SS-P1830-5ft-500

No reviews

$4,300.00

~~$5,375.00~~ -20% $4,300.00

*Limited-Time Offer — Sale ends September 25

Material 500g PVC 5ft Arch space

Product variants

Warranty

Frame 3 years, Tarp 2 years + 1 year prorated protection.

View details

Replacements

Parts

Product details

Dimensions: 18' × 30' × 17'
Structure: Single-truss galvanized-steel frame
Roof Profile: Peak
Cover Options: 500g PVC
Arch Configuration: 7 truss groups at 5 ft spacing
Performance Level: Basic
Typical Applications: Equipment, vehicle, machinery, material, and seasonal inventory storage
Installation: Use a suitable foundation and anchoring system; maintain cover tension

Specification	Details
Foundation Size Required	5780 mm (19') W × 9400 mm (30.8') L
Square Footage	540 sq-ft
Truss Spacing	60”
Truss Quantity	7 groups
Peak Ceiling Height	17’
Sidewall Height	13’
Truss Tubes	Ø2.3” – 15 GA (approx.)
Purlin Tubes	Ø2” – 15 GA (approx.)
Purlins on Rafter	42 of 7 rows
Door Clearance	13’ W × 14’ H
Cover Material	17 oz PVC fabric
Foundation Required	Concrete slabs or equivalent
Baseplates	Heavy-duty with pre-drilled holes
Anchoring	Included sleeve anchor bolts

Product manuals and documents

183017P_4x4m_Door_1.525m_Space_V2_EN.pdf

View Download

183017P_4x4m_Door_1.525m_Space_V2_FR.pdf

View Download

Product details

Dimensions: 18' × 30' × 17'
Structure: Single-truss galvanized-steel frame
Roof Profile: Peak
Cover Options: 500g PVC
Arch Configuration: 7 truss groups at 5 ft spacing
Performance Level: Basic
Typical Applications: Equipment, vehicle, machinery, material, and seasonal inventory storage
Installation: Use a suitable foundation and anchoring system; maintain cover tension

Specification	Details
Foundation Size Required	5780 mm (19') W × 9400 mm (30.8') L
Square Footage	540 sq-ft
Truss Spacing	60”
Truss Quantity	7 groups
Peak Ceiling Height	17’
Sidewall Height	13’
Truss Tubes	Ø2.3” – 15 GA (approx.)
Purlin Tubes	Ø2” – 15 GA (approx.)
Purlins on Rafter	42 of 7 rows
Door Clearance	13’ W × 14’ H
Cover Material	17 oz PVC fabric
Foundation Required	Concrete slabs or equivalent
Baseplates	Heavy-duty with pre-drilled holes
Anchoring	Included sleeve anchor bolts

Product manuals and documents

183017P_4x4m_Door_1.525m_Space_V2_EN.pdf

View Download

183017P_4x4m_Door_1.525m_Space_V2_FR.pdf

View Download

Comparison

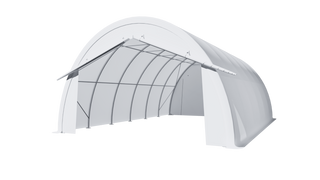

Attribute	Basic 6 arches W20'xL30'xH12' $2,499.00	Heavy Duty 7 arches W20'xL30'xH12' $2,999.00	Current Heavy Duty 7 arches W18'xL30'xH17' $4,300.00	Engineer Stamped 7 arches W20'xL30'xH12' $4,999.00
Door size	W14.4' x H10.7'	W14.4' x H10.7'	W13.0' x H14.0'	W14.4' x H10.7'
Snow load	1.6 kPa	1.8 kPa	1.8 kPa	2.4 kPa
Wind load	0.3 kPa	0.34 kPa	0.34 kPa	0.4 kPa
Warranty	Frame 3 years, Tarp 2 years + 1 year prorated protection.	Frame 3 years, Tarp 2 years + 1 year prorated protection.	Frame 3 years, Tarp 2 years + 1 year prorated protection.	Frame 10 years, Tarp 2 years + 6 year prorated protection.
