Xilin A500101 OPSM Electric Stacker 330Lb 118"

Only 1 left
SKU: XL-OPSM-II
No reviews
$11,500.00

Avoid prolonged use in low-temperature environments.

Charge periodically if the unit is stored or not used for a long time.

Product details

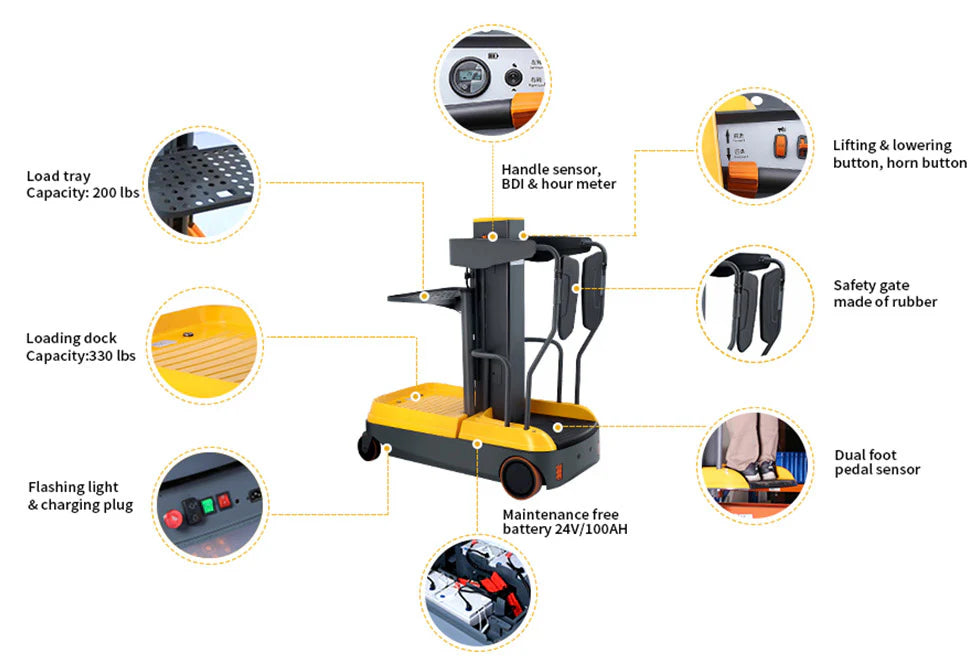

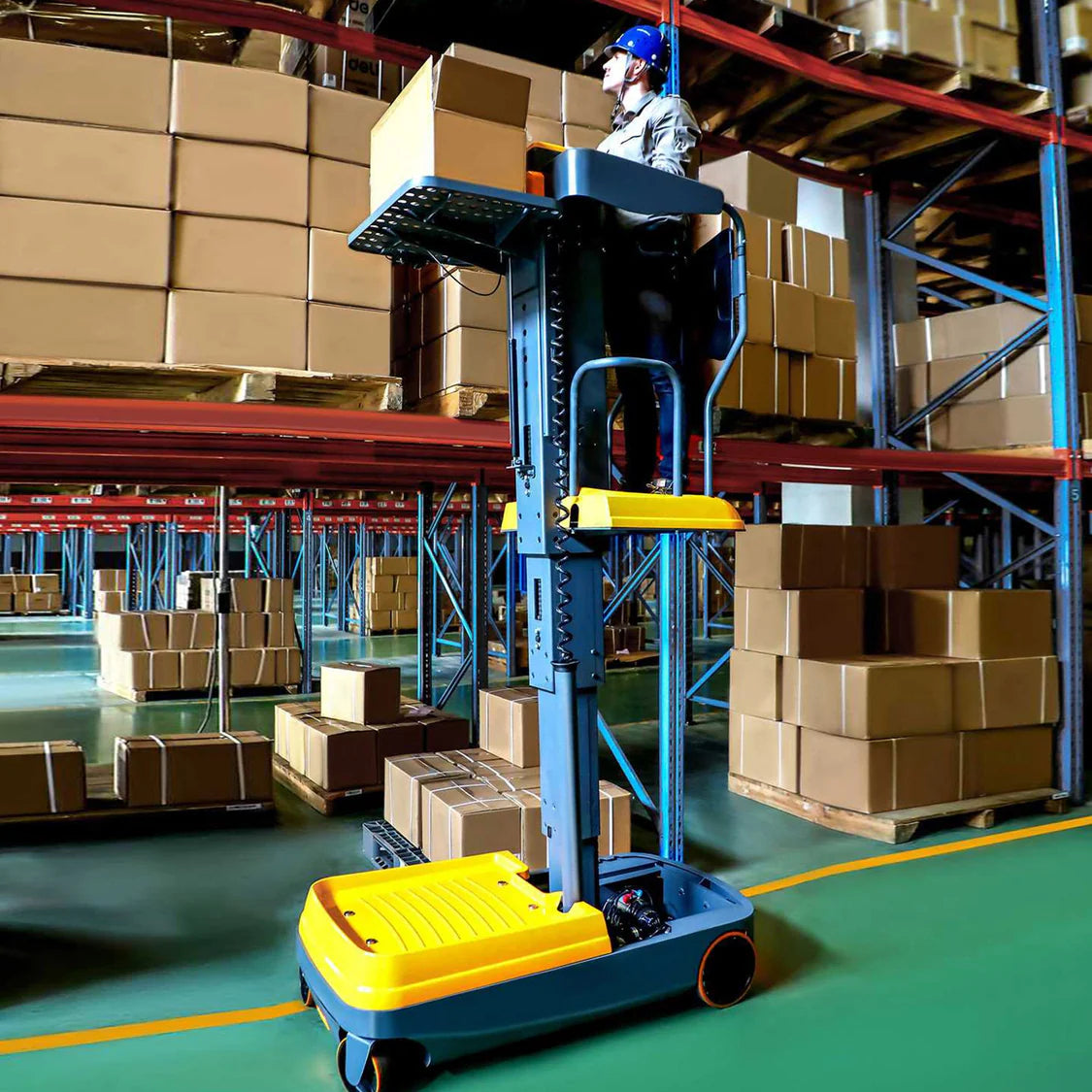

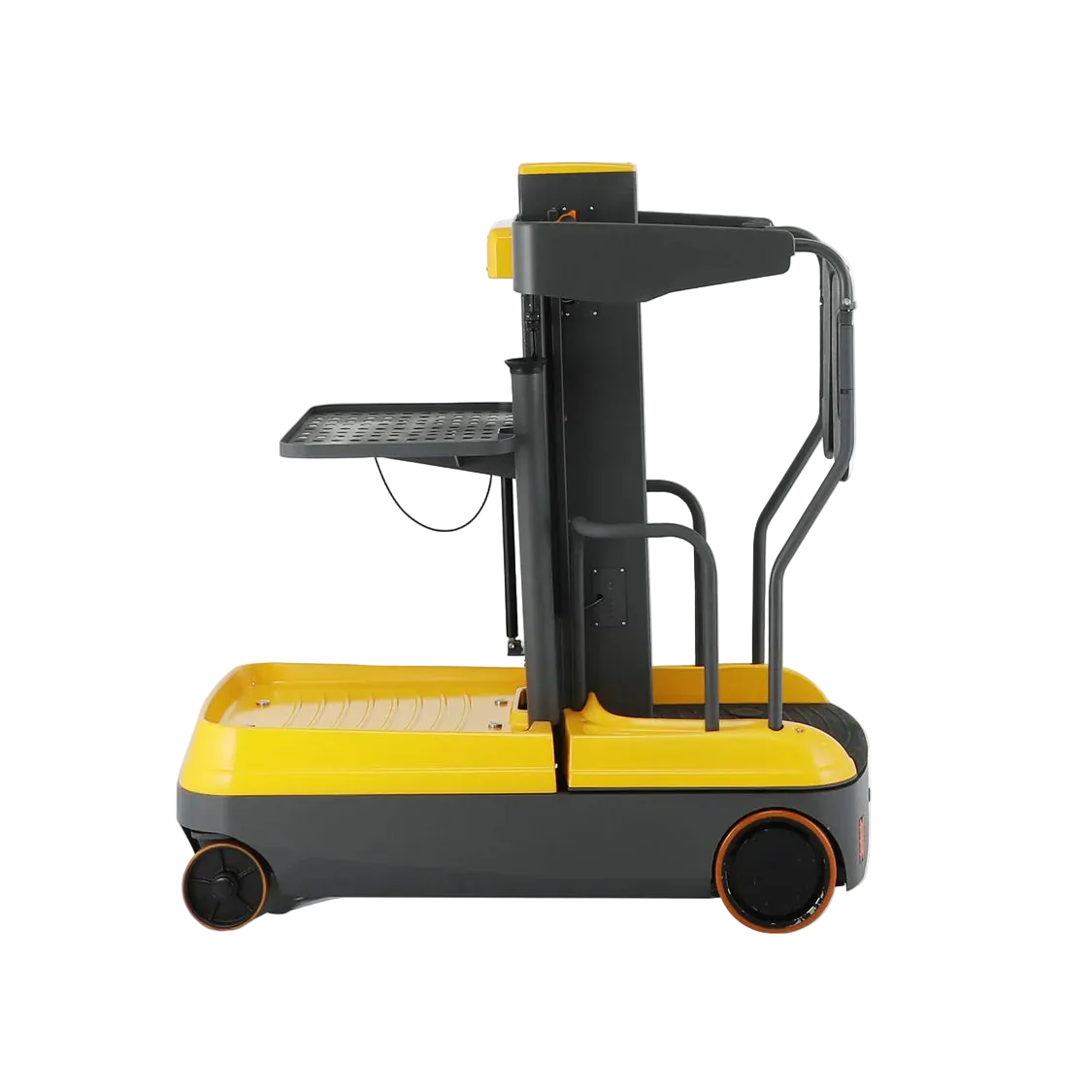

  •  Extended Reach in Narrow Spaces – 118" lift height with a 29.5" slim body for tight aisles.
  •  Dual-Drive Steering System – 51.2" turning radius for excellent maneuverability in compact areas.
  •  Smart Safety System – Foot sensors, speed reduction at height, and auto-locking safety gate reduce risks.
  •  Maintenance-Free Battery – 24V / 100Ah sealed battery system ensures long, worry-free runtime.
  •  Built-In 110V Charger – No extra equipment needed—charge anywhere with a standard wall outlet.

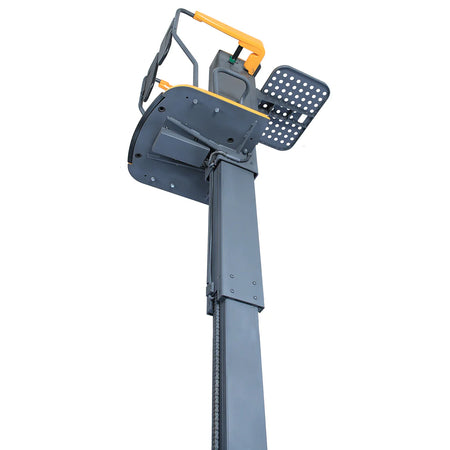

  •  Adjustable Mesh Tray – Height-adjustable tray (manual/electric) supports flexible loading needs.
  •  LED Work Light Ready – Optional lighting improves safety and visibility in dim environments.

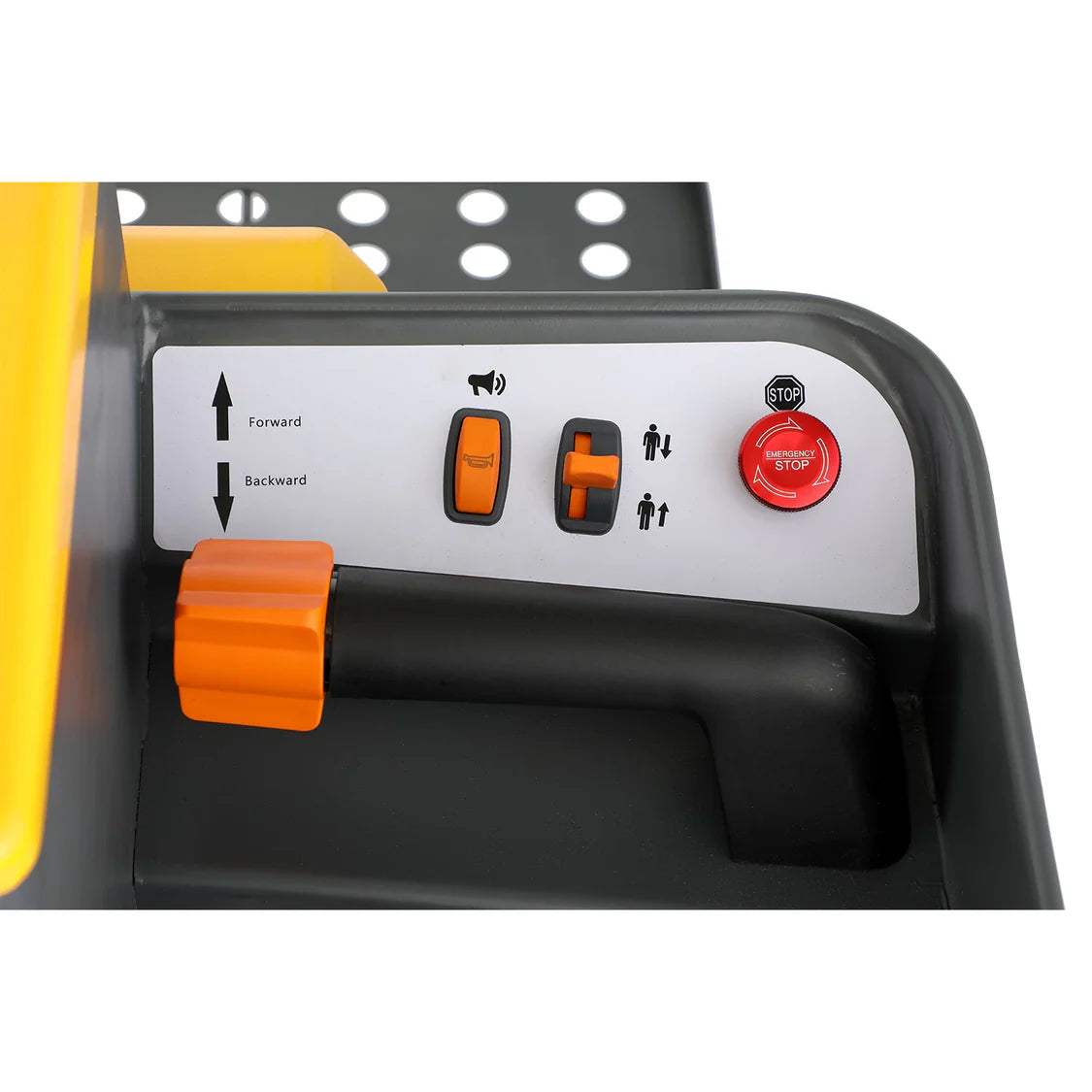

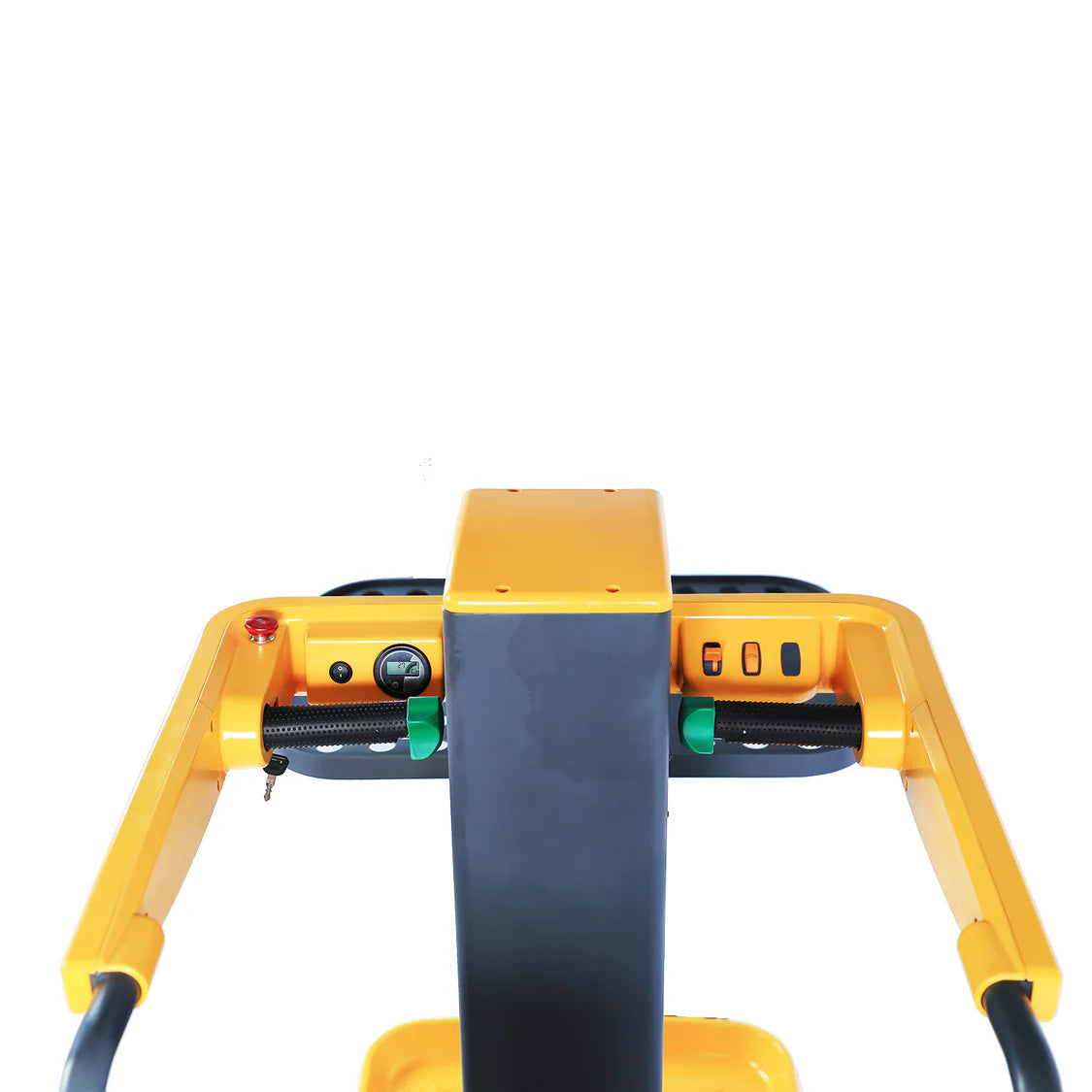

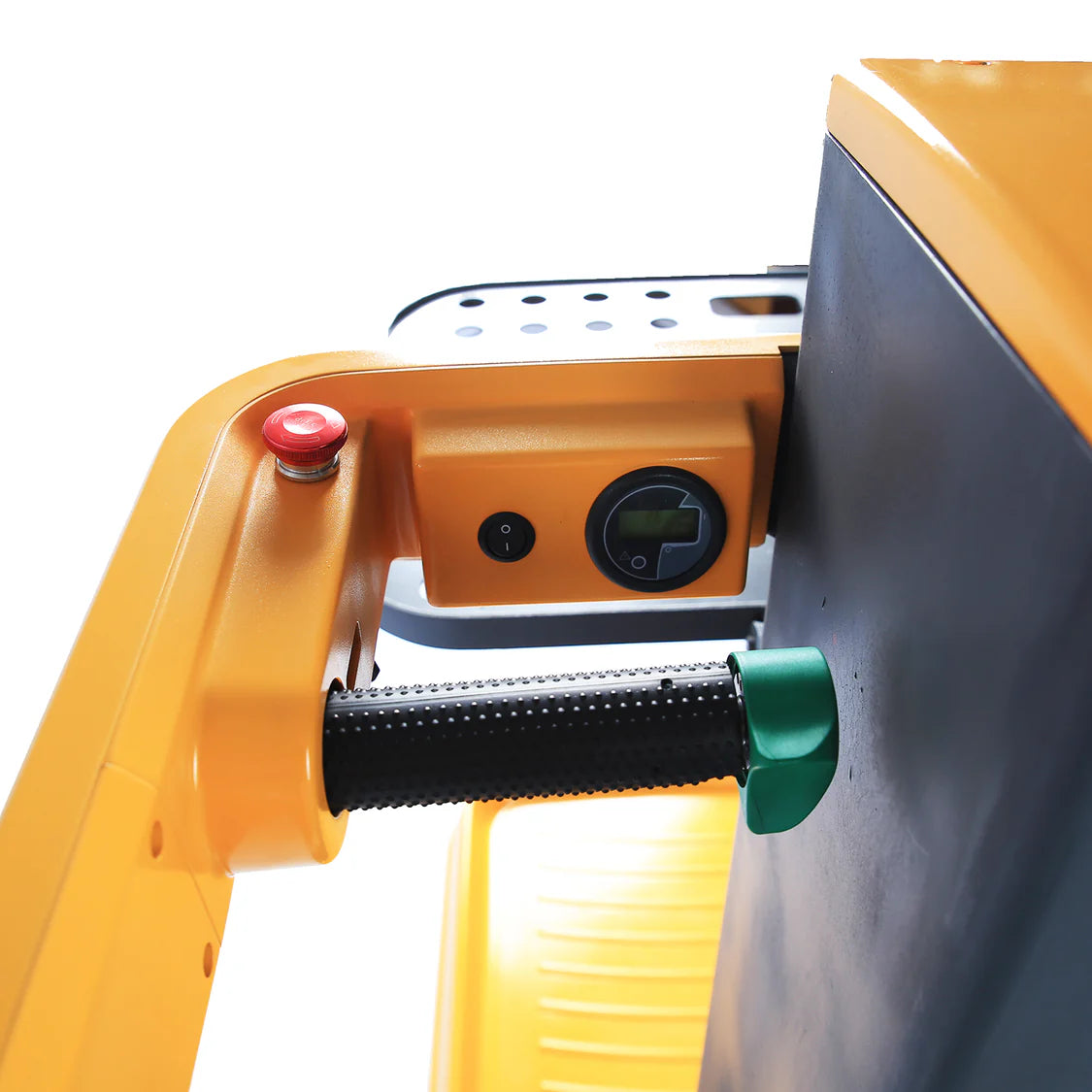

  •  Two-Handed Control System – Enhances operator safety by requiring both hands to activate movement/lift.
  •  Lower Operational Costs – Replaces ladders, reduces injury risk, and increases work efficiency.

Product details

  •  Extended Reach in Narrow Spaces – 118" lift height with a 29.5" slim body for tight aisles.
  •  Dual-Drive Steering System – 51.2" turning radius for excellent maneuverability in compact areas.
  •  Smart Safety System – Foot sensors, speed reduction at height, and auto-locking safety gate reduce risks.
  •  Maintenance-Free Battery – 24V / 100Ah sealed battery system ensures long, worry-free runtime.
  •  Built-In 110V Charger – No extra equipment needed—charge anywhere with a standard wall outlet.
  •  Adjustable Mesh Tray – Height-adjustable tray (manual/electric) supports flexible loading needs.
  •  LED Work Light Ready – Optional lighting improves safety and visibility in dim environments.
  •  Two-Handed Control System – Enhances operator safety by requiring both hands to activate movement/lift.
  •  Lower Operational Costs – Replaces ladders, reduces injury risk, and increases work efficiency.

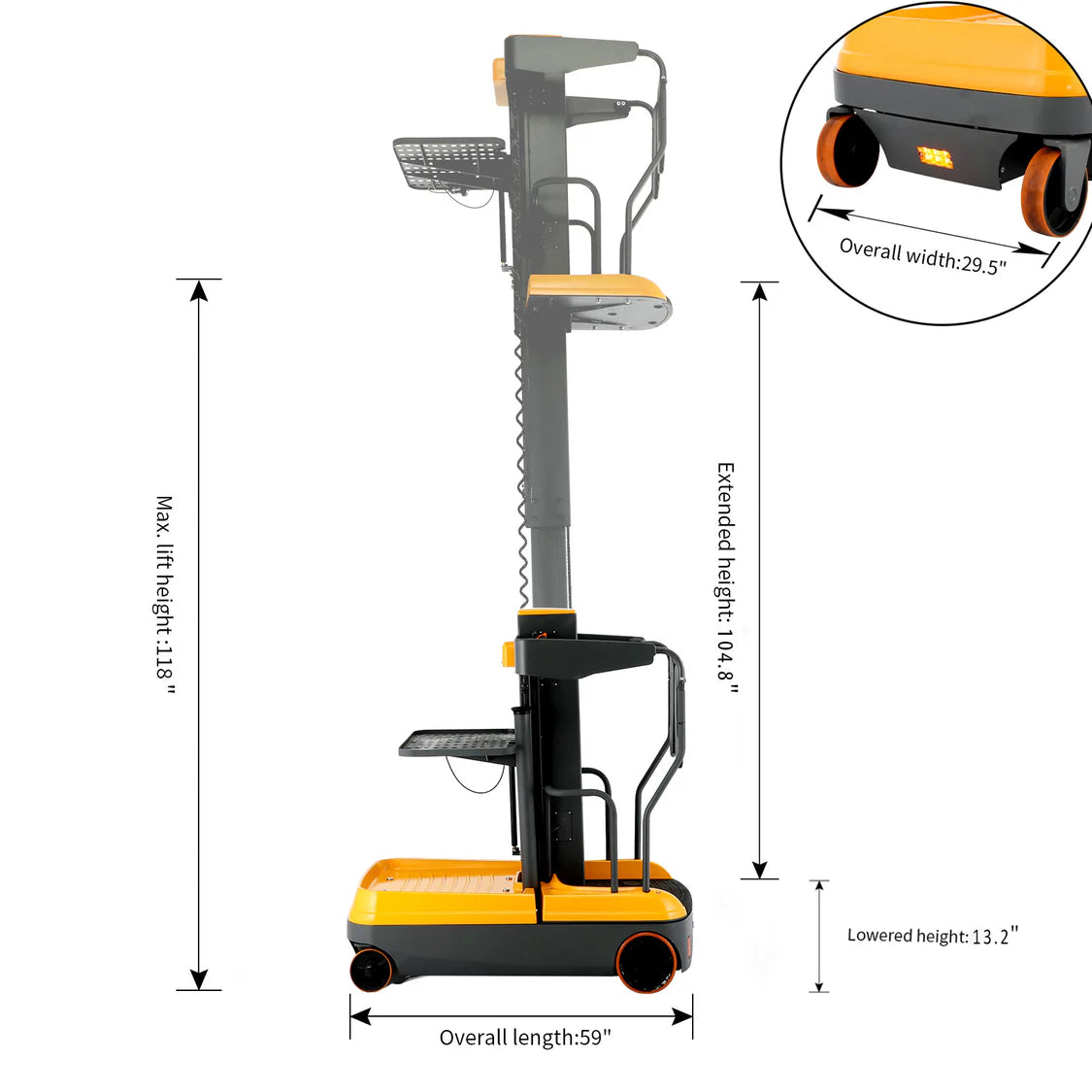

 Capacity 330 lbs
 Turning Radius 51.2"
 Aisle Width 68.9"
 Overall Width 29.5"
 Overall Length 59"

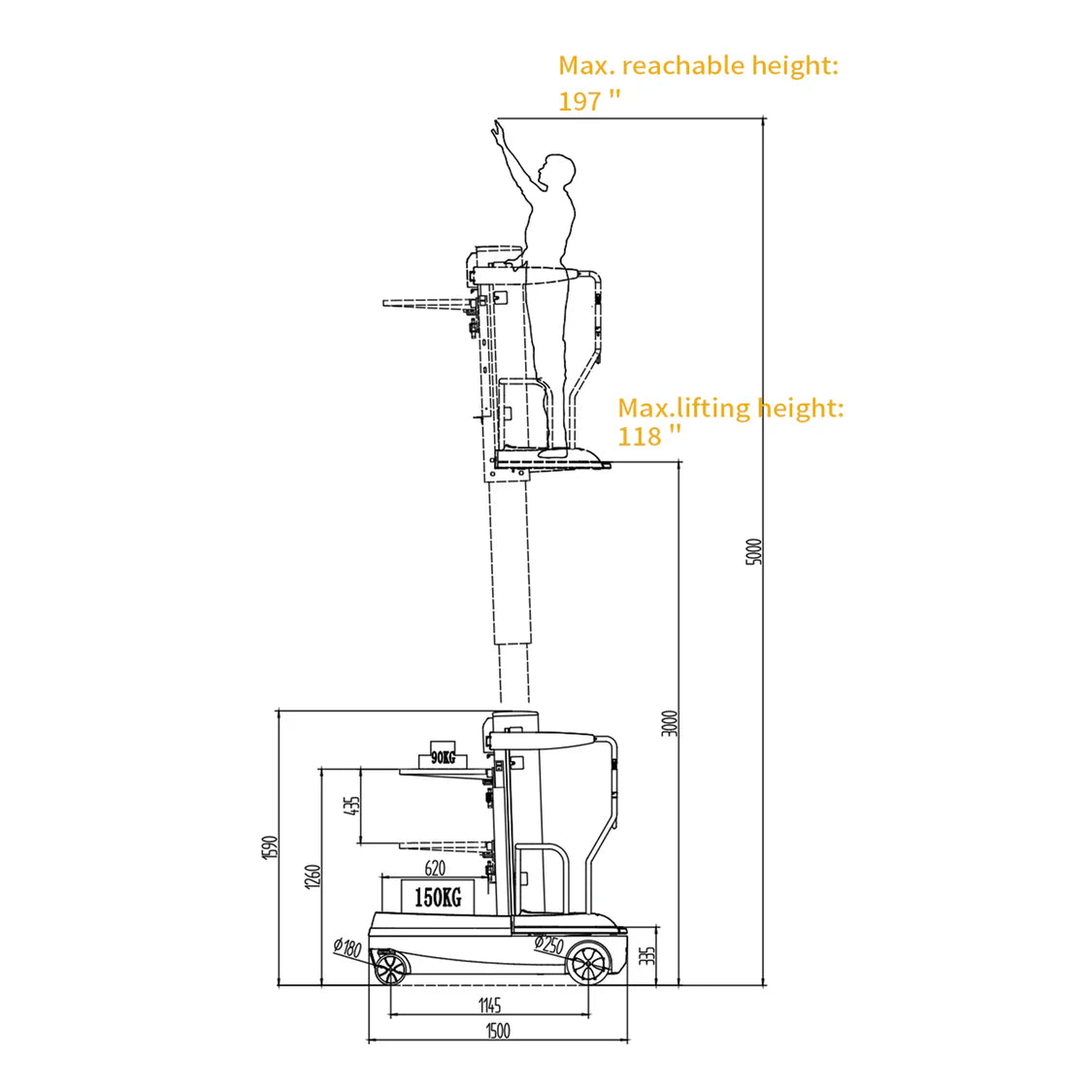

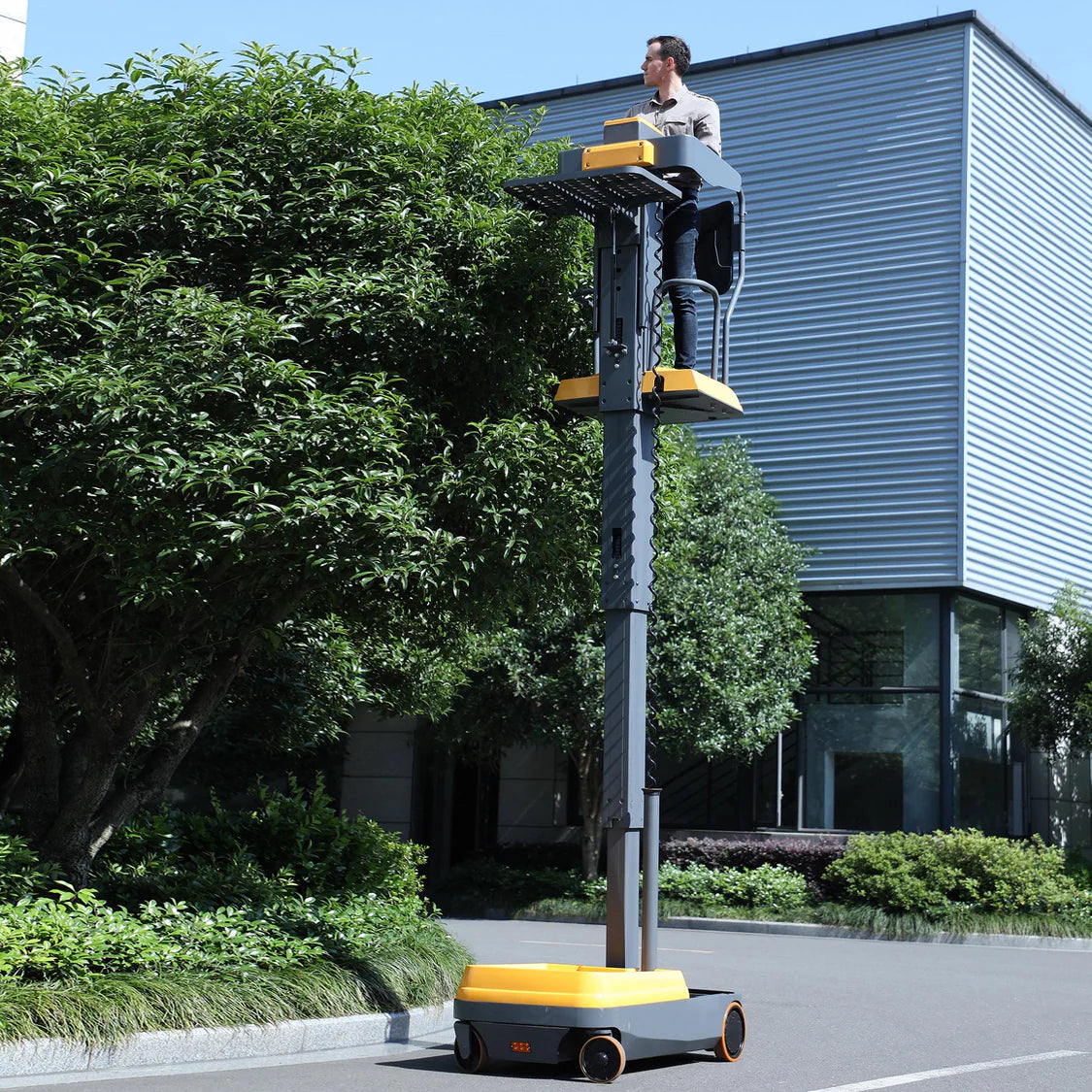

 Platform Max Lifting Height 118"
 Platform Extended Height 104.8"
 Platform Lowered Height 13.2"
 Battery 24V / 100Ah (Maintenance-Free)
 Charger 24V / 10A Built-in
 Travel Speed (Laden) 2.8 mph
 Lifting Speed 5.5 in/s
 Lowering Speed 5.1 in/s
 Service Weight 1705 lbs

Product manuals and documents

OPSM_Operation_Manual_20230713.pdf

View Download
