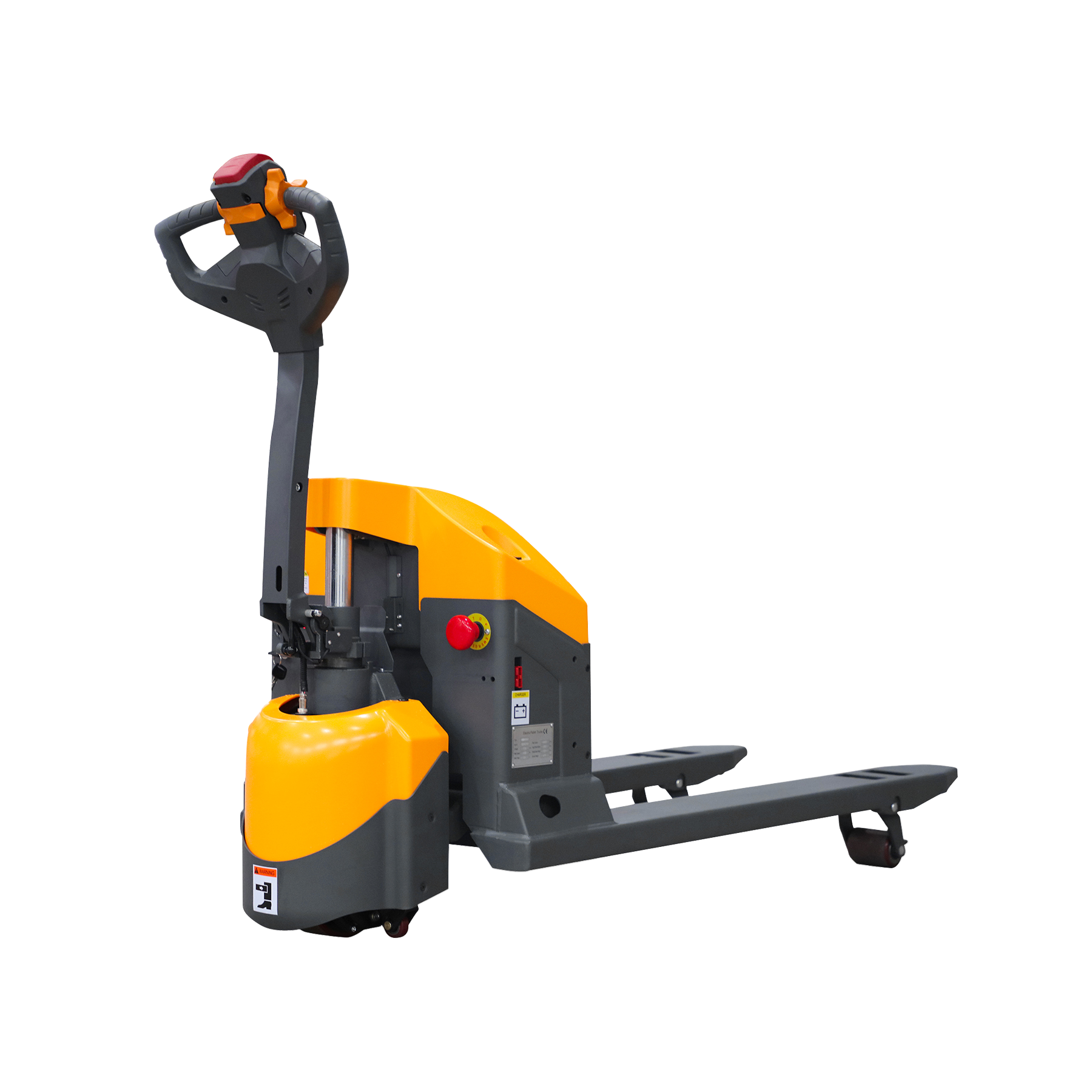

3300lbs Electric Pallet Truck W-E

In stock
SKU: PJ-E33-W-E
No reviews
$2,009.00
$2,871.00 -30% $2,009.00

*Limited-Time Offer — Sale ends September 25

Avoid prolonged use in low-temperature environments.

Charge periodically if the unit is stored or not used for a long time.

Product details
  • Integrated Control Handle – One-hand operation for lift, drive, horn, turtle mode, and reverse.
  •  Compact, Easy-to-Operate Design – Works smoothly in narrow aisles and confined areas.
  •  All-in-One Electrical System – Streamlined wiring for easier maintenance and fewer failures.
  •  Durable Rocker Arm Frame – Distributes load force evenly for structural reliability.
  •  Low-Pressure Plunger Cylinder – Extends lifting system life and reduces failure rate.
  •  Upright Travel with Turtle Speed – Precise control in tight spots with vertical handle mode.
  •  Floating Balance Wheels – Improves stability, reduces side sway while driving.
  •  Top-Mounted Drive Motor – Elevated position resists water/oil damage, easier to service.
  •  Quiet & Durable Gearbox – Lubricated with gear oil for smooth, low-noise operation.
  •  Compact Turning Radius – Navigates easily through trucks and containers.
  •  Removable Rear Battery Cover – Allows fast, hassle-free battery swaps.

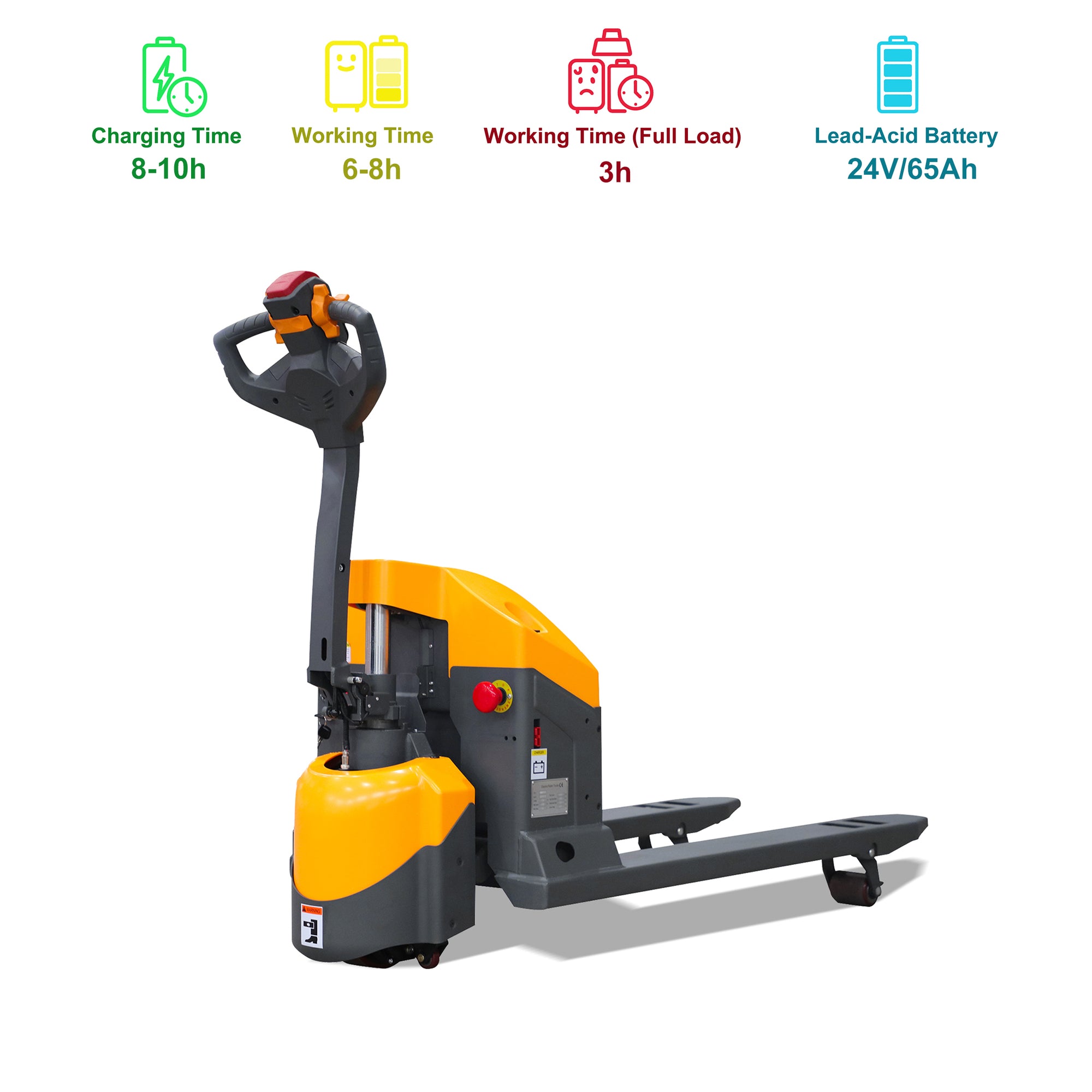

  •  Lead-Acid Battery System – 24V / 65Ah battery with external charger for long daily use.
  •  Full Safety Package – Includes belly switch, overload protection, lift limit, and more.
  •  Quiet & Eco-Friendly – Zero emissions, low noise—great for indoor environments.
  •  Reliable Braking System – High-torque brakes for safe stopping, even on slopes.
  •  Pallet Entry Rollers – Helps forks slide smoothly in and out of pallets.

Product details

  • Integrated Control Handle – One-hand operation for lift, drive, horn, turtle mode, and reverse.
  •  Compact, Easy-to-Operate Design – Works smoothly in narrow aisles and confined areas.
  •  All-in-One Electrical System – Streamlined wiring for easier maintenance and fewer failures.
  •  Durable Rocker Arm Frame – Distributes load force evenly for structural reliability.
  •  Low-Pressure Plunger Cylinder – Extends lifting system life and reduces failure rate.
  •  Upright Travel with Turtle Speed – Precise control in tight spots with vertical handle mode.
  •  Floating Balance Wheels – Improves stability, reduces side sway while driving.
  •  Top-Mounted Drive Motor – Elevated position resists water/oil damage, easier to service.
  •  Quiet & Durable Gearbox – Lubricated with gear oil for smooth, low-noise operation.
  •  Compact Turning Radius – Navigates easily through trucks and containers.
  •  Removable Rear Battery Cover – Allows fast, hassle-free battery swaps.
  •  Lead-Acid Battery System – 24V / 65Ah battery with external charger for long daily use.
  •  Full Safety Package – Includes belly switch, overload protection, lift limit, and more.
  •  Quiet & Eco-Friendly – Zero emissions, low noise—great for indoor environments.
  •  Reliable Braking System – High-torque brakes for safe stopping, even on slopes.
  •  Pallet Entry Rollers – Helps forks slide smoothly in and out of pallets.

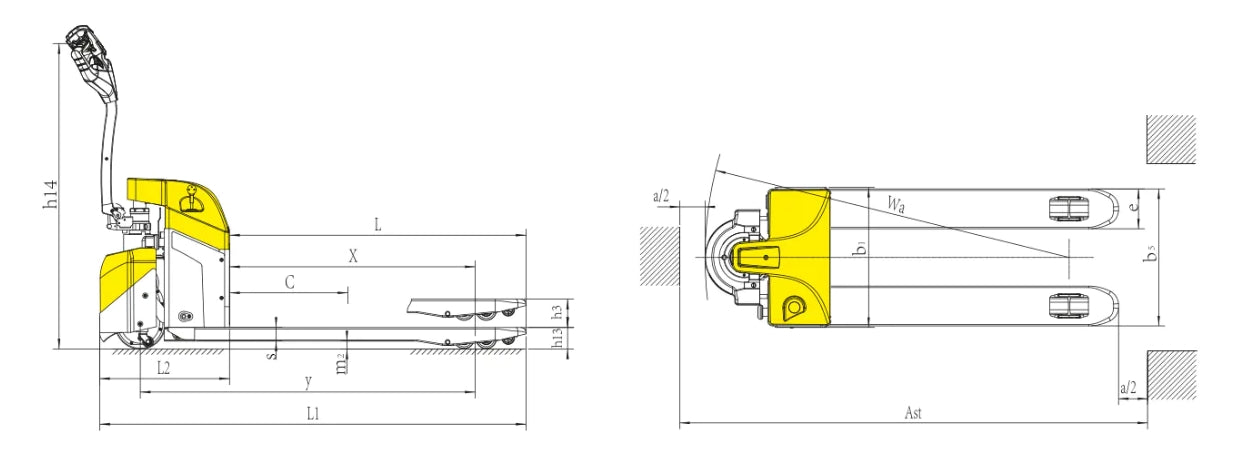

 Load Capacity 3,300 lbs
 Turning Radius 60"
 Aisle Width 93.1"

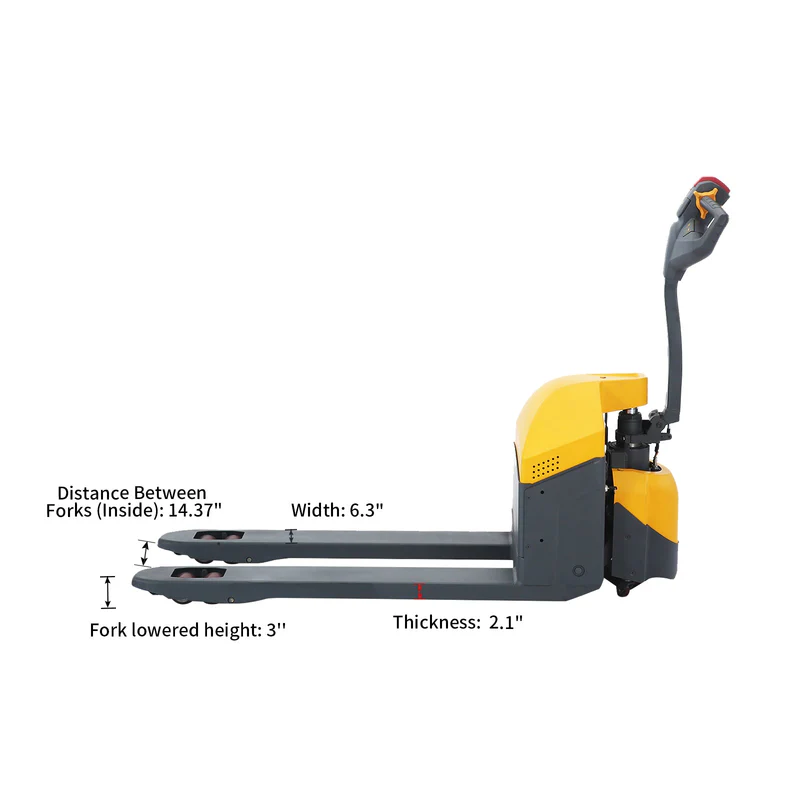

 Fork Dimensions 48" L × 27" W × 2.1" Thick
 Inside Fork Width 14.4"

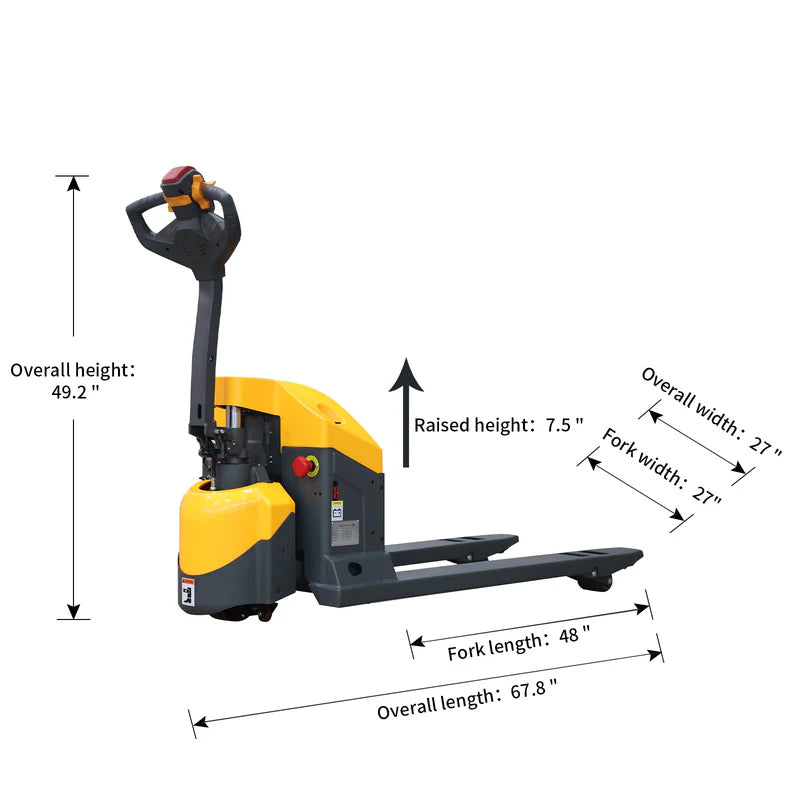

 Overall Size (L×W×H) 70.1" × 27" × 50.2"
 Fork Lowered Height 3"
 Lifting Distance 4.3"
 Max Fork Height 7.3"
 Battery 24V / 65Ah Lead-Acid
 Charger 24V / 8A External
 Travel Speed (Laden) 2.7 mph
 Travel Speed (Unladen) 3.0 mph
 Service Weight 487 lbs

Product manuals and documents

3300lbs_Electric_Pallet_Truck_W-E_CBD15W-E_Operation_Manual_20221109_fr.pdf

View Download

3300lbs_Electric_Pallet_Truck_W-E_CBD15W-E_Operation_Manual_20221109.pdf

View Download
