Avoid prolonged use in low-temperature environments.
Charge periodically if the unit is stored or not used for a long time.
Couldn't load pickup availability

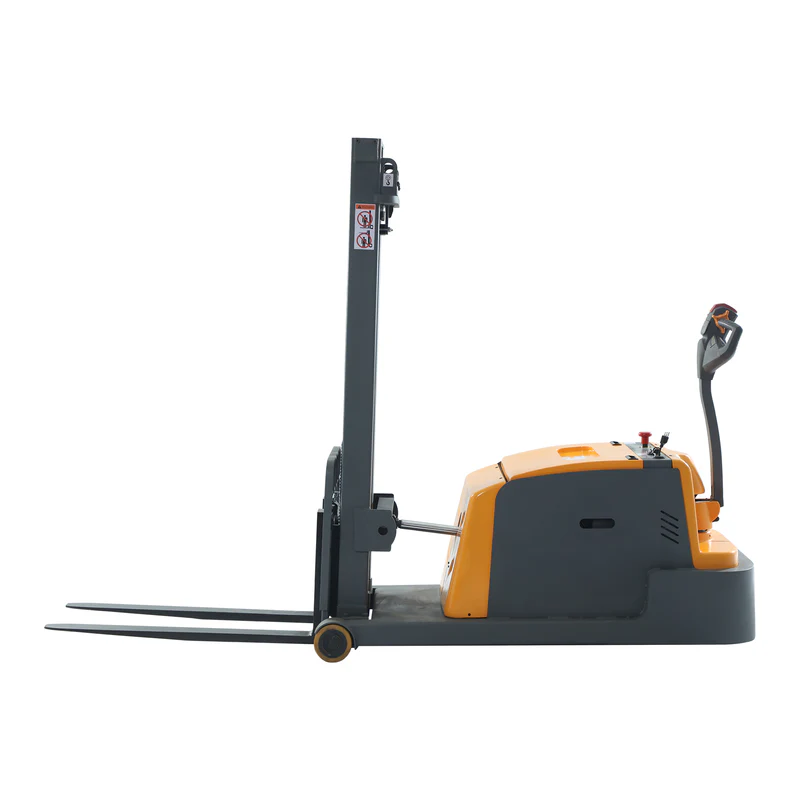

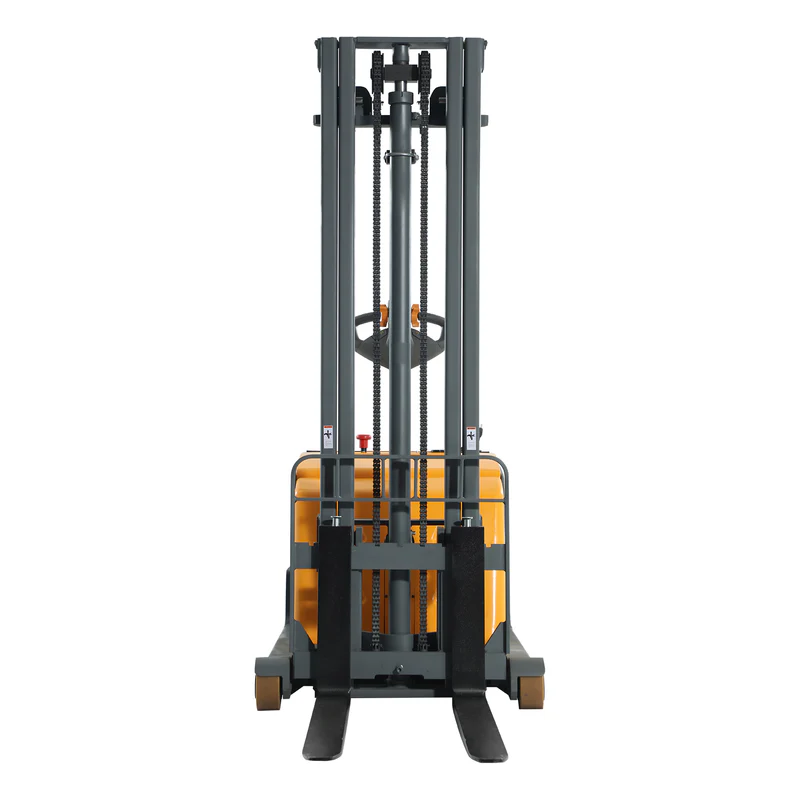

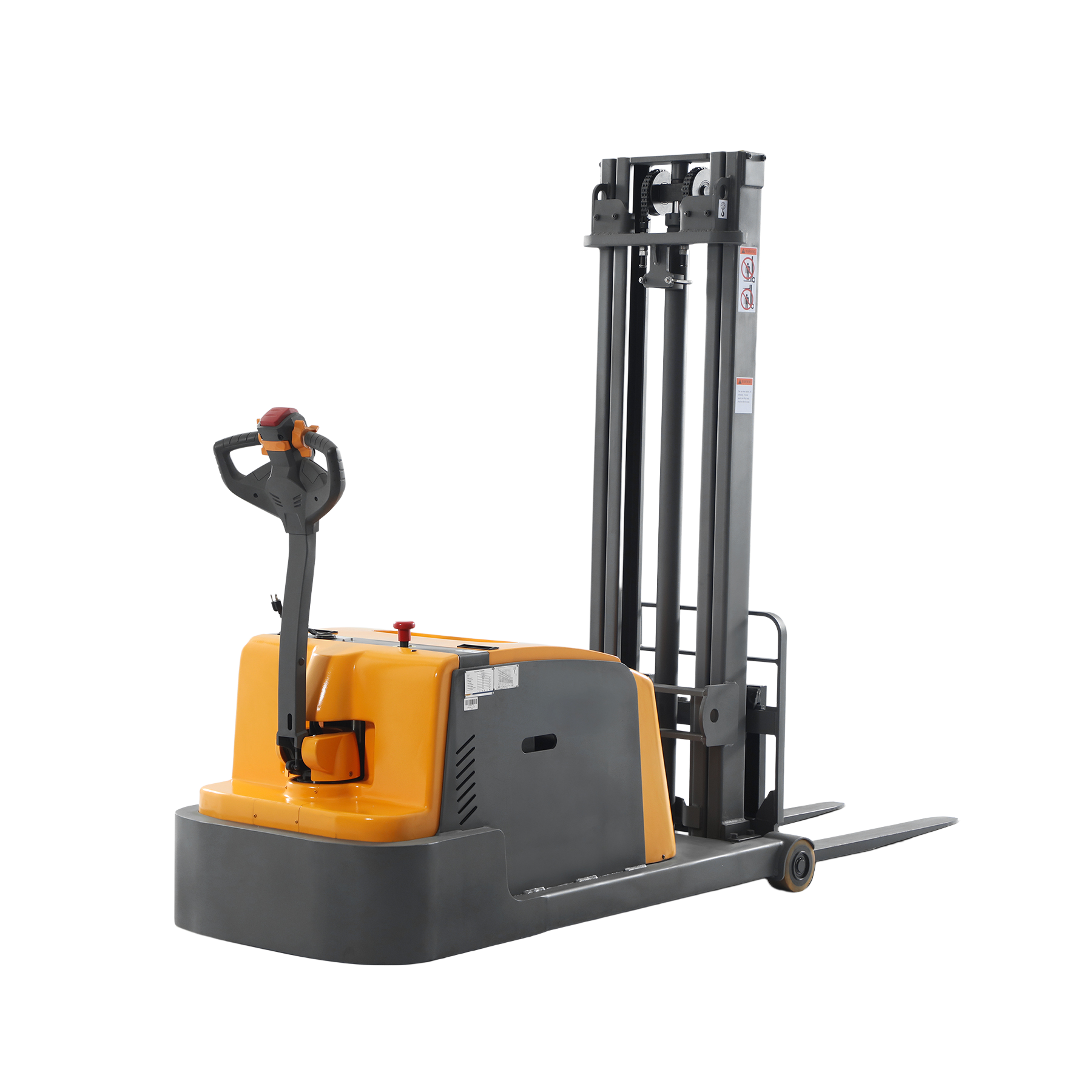

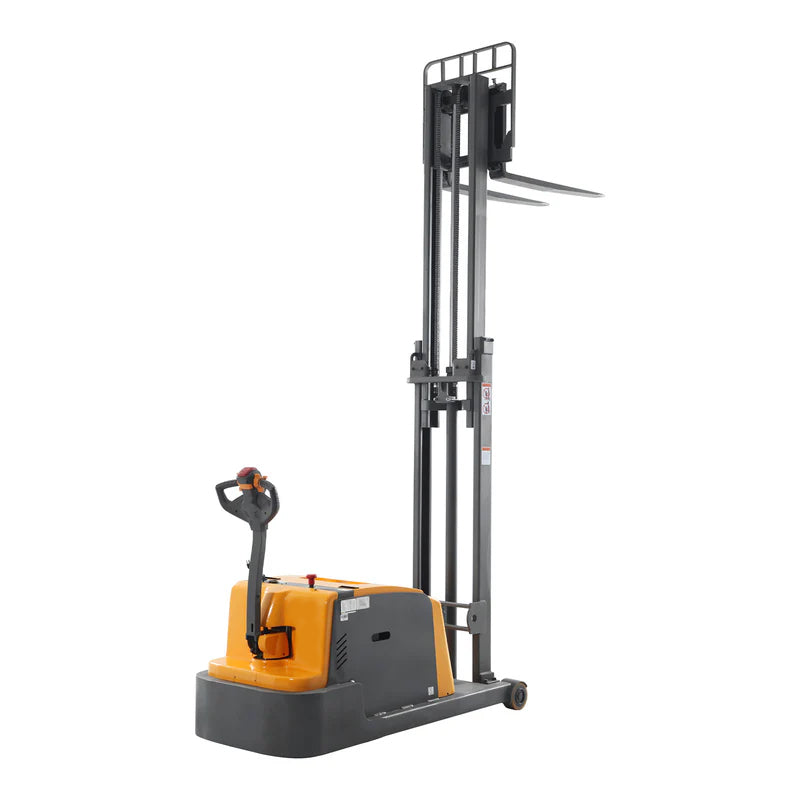

The CPD15W-II-118 Counterbalanced Electric Stacker is a compact and powerful solution designed for efficient material handling in tight warehouse environments. With a robust lifting capacity of 3,300 lbs and a maximum lift height of 118 inches, this stacker combines performance, safety, and ease of maintenance.


- Counterbalanced Design: Eliminates the need for front straddle legs, allowing easy access to closed-bottom pallets and tight spaces.â
- Powerful Performance: Equipped with a 24V/125Ah sealed lead-acid battery, providing long operational hours and efficient energy usage.â
- Advanced Control System: Features a brushless AC drive motor for smooth acceleration, regenerative braking, and reduced maintenance.
- Ergonomic Operation: Multi-function handle offers fingertip control for lift, drive, tilt, horn, reverse, and turtle mode, enhancing operator comfort and productivity.
- Safety First: Includes emergency stop switch, belly switch, anti-drop valve, and an interlock system to ensure operator safety.
- Easy Maintenance: Designed with a magnet suction battery cover and modular components for straightforward inspection and servicing.

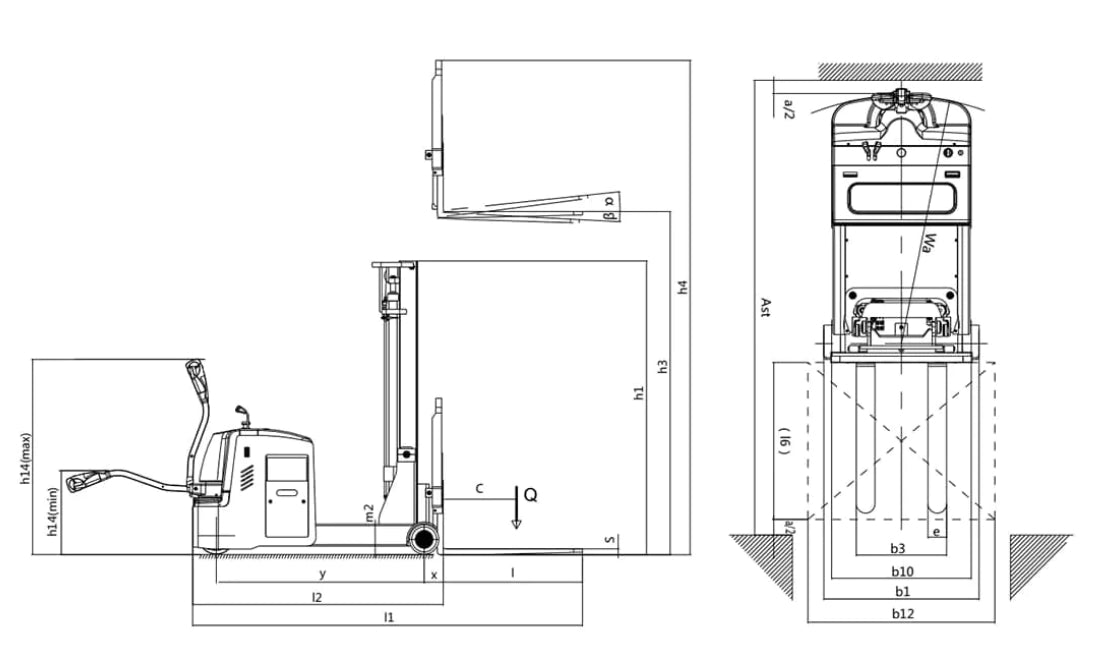

| Item | Code/Unit | Value |
|---|---|---|
| Drive | - | Electric |
| Operator type | - | Pedestrian |
| Rated capacity | Q (kg) | 1500 |
| Load center distance | c (mm) | 500 |
| Load distance, center of drive axle to fork | x (mm) | 140 |
| Wheelbase | y (mm) | 1530 |
| Service weight | kg | 1530 |
| Axle loading, laden front/rear | kg | 380/2650 |
| Axle loading, unladen front/rear | kg | 970/560 |
| Tyres | - | Polyurethane |
| Tyre size, front | - | Ί195Ă70 |
| Tyre size, rear | - | Ί150Ă73 |
| Additional wheels | - | Ί114Ă60 |
| Wheels, number front/rear | - | 1Ă+2/2 |
| Tread, front | b10 (mm) | 796 |
| Tread, rear | b11 (mm) | 508 |
| Tilt of mast/fork carriage forward/backward | a/b (°) | 1/3 |

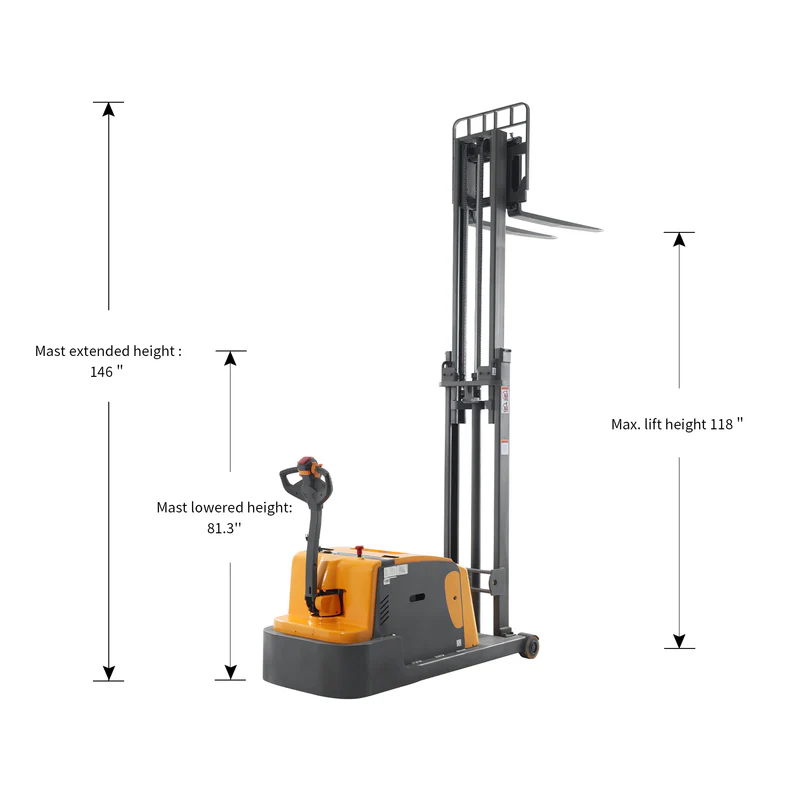

| Height, mast lowered | h1 (mm) | 2065/1565/1815/2065 |
| Lift height | h3 (mm) | 1600/2000/2500/3000 |
| Height, mast extended | h4 (mm) | 2310/2710/3210/3710 |
| Height drawbar in driving position min./max. | h14 (mm) | 670/1300 |

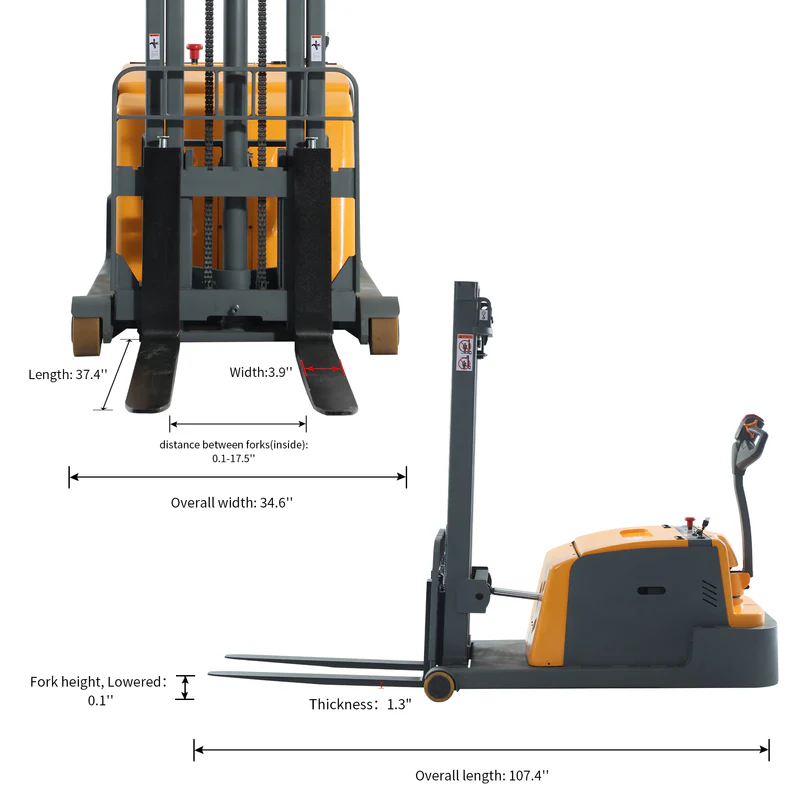

| Overall length | l1 (mm) | 2729 |
| Length to face of forks | l2 (mm) | 1779 |
| Overall width | b1/b2 (mm) | 878 |
| Fork dimensions DIN ISO 2331 | s/e/l (mm) | 35/100/950 |
| Ground clearance, center of wheelbase | m2 (mm) | 55 |
| Aisle width for pallets 1000 Ă 1200 crossways | Ast (mm) | 3100 |
| Aisle width for pallets 800 Ă 1200 lengthways | Ast (mm) | 3250 |
| Turning radius | Wa (mm) | 1700 |
| Travel speed, laden/unladen | km/h | 3.5/4.0 |
| Lift speed, laden/unladen | m/s | 0.08/0.12 |
| Lowering speed, laden/unladen | m/s | 0.12/0.10 |
| Max. gradeability, laden/unladen | % | 5/10 |
| Service brake | - | Electromagnetic |
| Drive motor rating S2 60 min | kW | 0.75 (AC) |
| Lift motor rating at S3 15% | kW | 2.2 (DC) |
| Battery voltage/nominal capacity | V/Ah | 24/125 |
| Battery weight | kg | 60.8 |
| Sound pressure level at the driverâs seat | dB (A) | 65 |
| Package Dimensions | Package Weight |
|---|
Chery Industrial Canada â Equipment Warranty Service Policy
1. General Warranty Coverage
Weâve got you covered. All of our products come with a 1-Year Warranty (excluding batteries), ensuring your purchase is protected. If you ever need assistance or replacement parts, our dedicated customer service team is always ready to help.
2. How to Initiate a Warranty Claim
Before sending any product back for service, you must contact our support team to initiate the process. Please include your Invoice Number and relevant photos of the issue.
- Email: info@cheryindustrial.ca
- Phone: +1 800 765 0877
3. Shipment & Inspection Procedure
- Shipping Method: If a product requires inspection for a quality defect, the customer must ship it to our service center via mail or sea freight.
- Initial Shipping Costs: Shipping costs for sending the item to our facility are the responsibility of the customer.
- Inspection Timeline: Upon receipt of the product, we will complete a comprehensive inspection within 3 business days and inform you of the next steps.
4. Warranty Resolutions
Based on the inspection results, the following resolutions apply:
- Confirmed Quality Defects:If the inspection confirms a defect requiring parts or a replacement, we will dispatch the items on the 4th business day.
- Shipping Cost: Chery Industrial Canada will cover the shipping costs for sending the replacement or parts to you.
- Loaner Unit: We can provide a temporary loaner unit of the same model upon request. Note: Shipping costs for this loaner are the customer's responsibility.
- Improper Use (During Warranty Period):If the inspection reveals that repairs are needed due to improper use, the repair costs (parts and labor) will be covered by the warranty.Shipping Cost: However, all shipping costs associated with sending the unit in and returning it to you are the customer's responsibility.
- Out of Warranty:For any issues arising outside the warranty period, the customer is responsible for all costs, including repairs, spare parts, and shipping fees.
