Xilin A-3047 Straddle Electric Stacker 3300lbs 118''

Only 2 left
SKU: XL-CTR15R-EN-118
No reviews
$6,516.00

Avoid prolonged use in low-temperature environments.

Charge periodically if the unit is stored or not used for a long time.

Product details
  •  Unified Modular Design – Clean industrial look with durable steel covers and family-style visuals.
  •  Compact for Narrow Spaces – Ideal for stacking, transport, and retail backroom use.
  •  Top-Mounted Drive Motor – Keeps motor clear of ground debris for extended performance.
  •  Accessible Layout – Modular parts with oil-lubricated gearbox for quiet, reliable movement.
  •  3-Point Chassis Structure – Center drive wheel and low battery placement enhance stability.
  •  Plug-in Charging – Internal 24V/10A charger—no external equipment needed.
  •  Explosion-Proof Valve – Prevents free-fall in case of hydraulic failure, ensuring safe lifting.

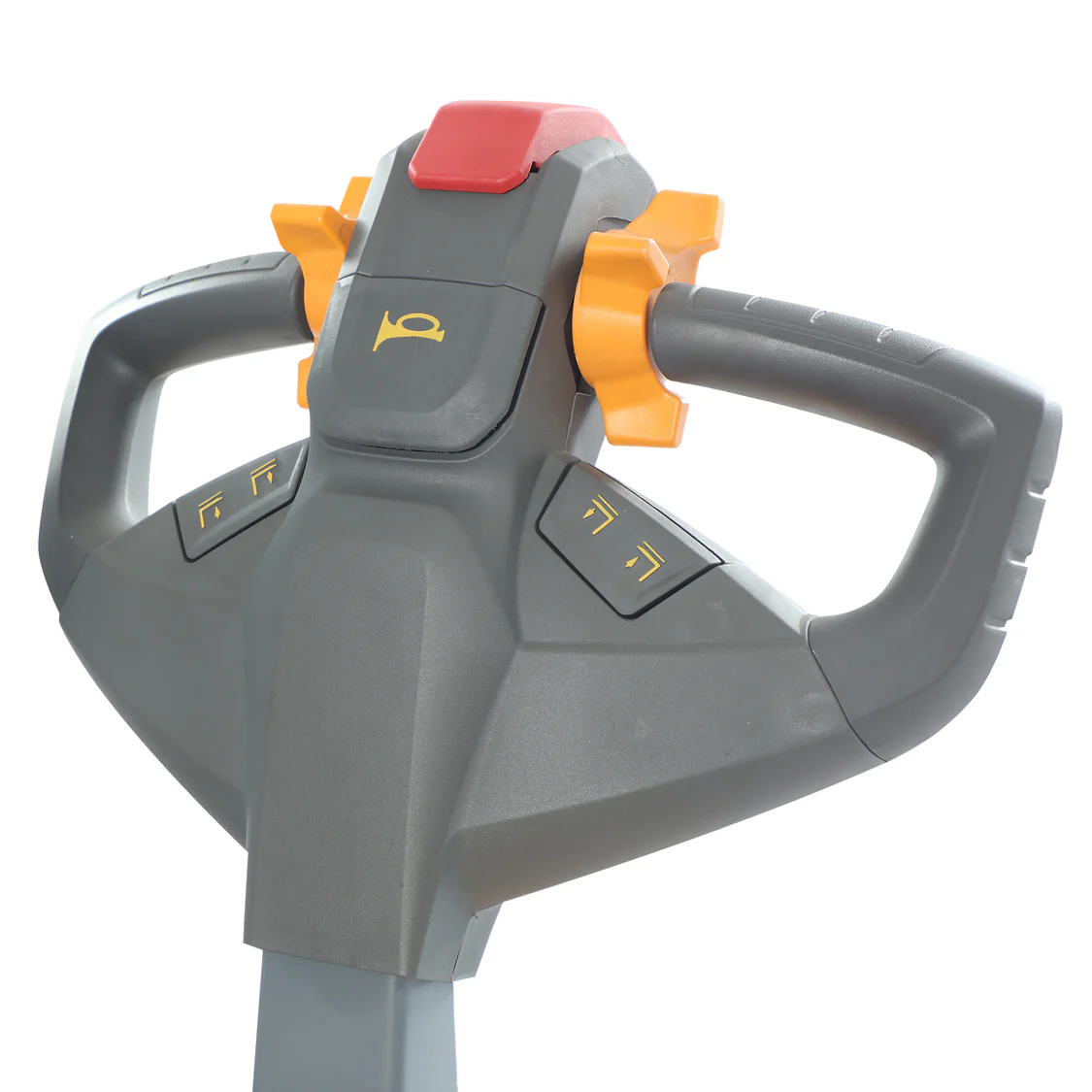

  •  Full-Function Handle – Includes throttle, lift/lower, horn, reverse, turtle mode, and e-stop.

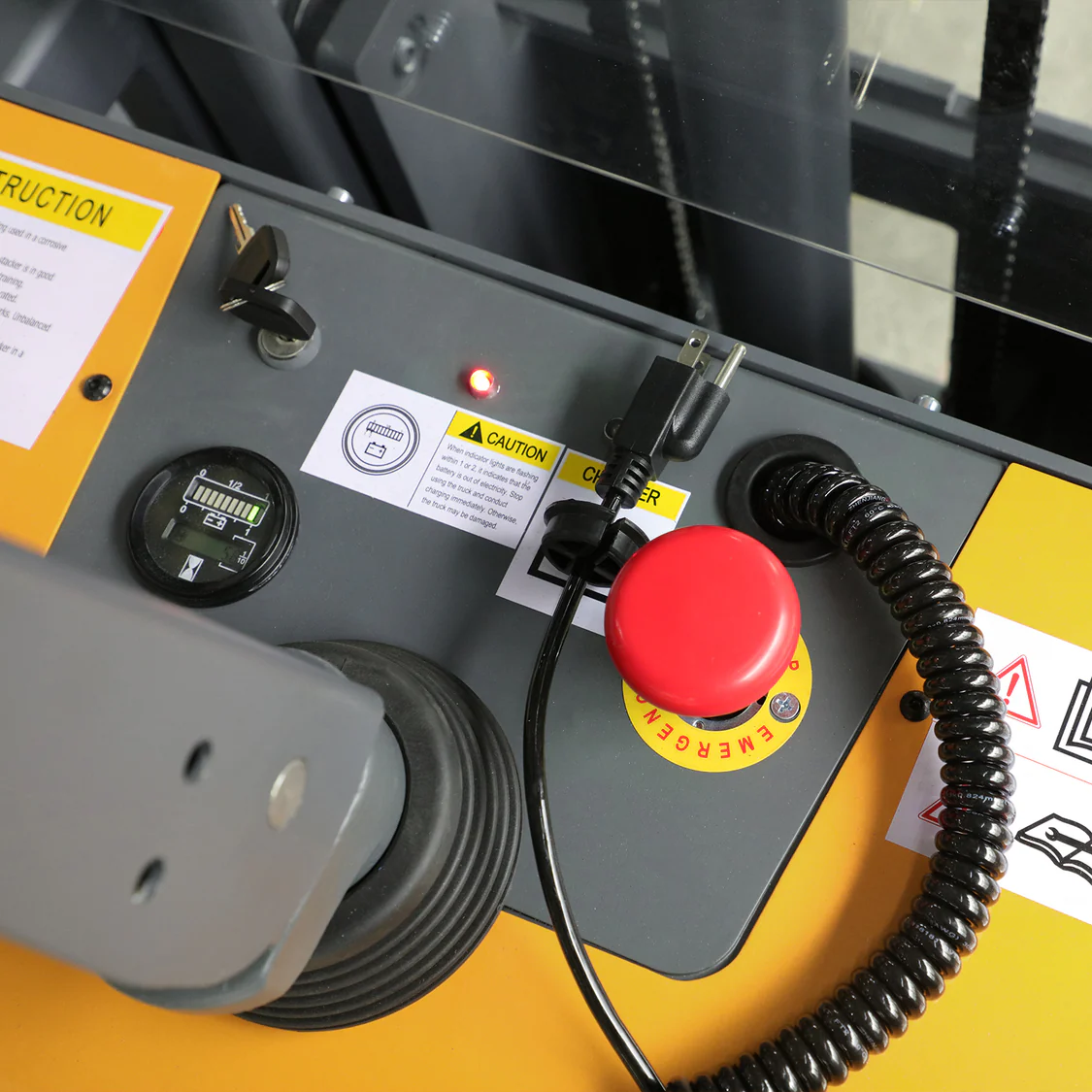

  •  Reliable Battery System – 24V/100Ah capacity, full charge in ~10 hrs, dashboard shows charge & run-time.
  •  Customizable Drive Settings – Speed and acceleration adjustable via handheld service controller.
  •  Complete Circuit Protection – Each system protected by dedicated fuse for long-term reliability.

Product details

  •  Unified Modular Design – Clean industrial look with durable steel covers and family-style visuals.
  •  Compact for Narrow Spaces – Ideal for stacking, transport, and retail backroom use.
  •  Top-Mounted Drive Motor – Keeps motor clear of ground debris for extended performance.
  •  Accessible Layout – Modular parts with oil-lubricated gearbox for quiet, reliable movement.
  •  3-Point Chassis Structure – Center drive wheel and low battery placement enhance stability.
  •  Plug-in Charging – Internal 24V/10A charger—no external equipment needed.
  •  Explosion-Proof Valve – Prevents free-fall in case of hydraulic failure, ensuring safe lifting.
  •  Full-Function Handle – Includes throttle, lift/lower, horn, reverse, turtle mode, and e-stop.
  •  Reliable Battery System – 24V/100Ah capacity, full charge in ~10 hrs, dashboard shows charge & run-time.
  •  Customizable Drive Settings – Speed and acceleration adjustable via handheld service controller.
  •  Complete Circuit Protection – Each system protected by dedicated fuse for long-term reliability.
Specification Details
Load Capacity 3,300 lbs
Load Center 23.6"
Turning Radius 52.9"
Aisle Width 88.3"

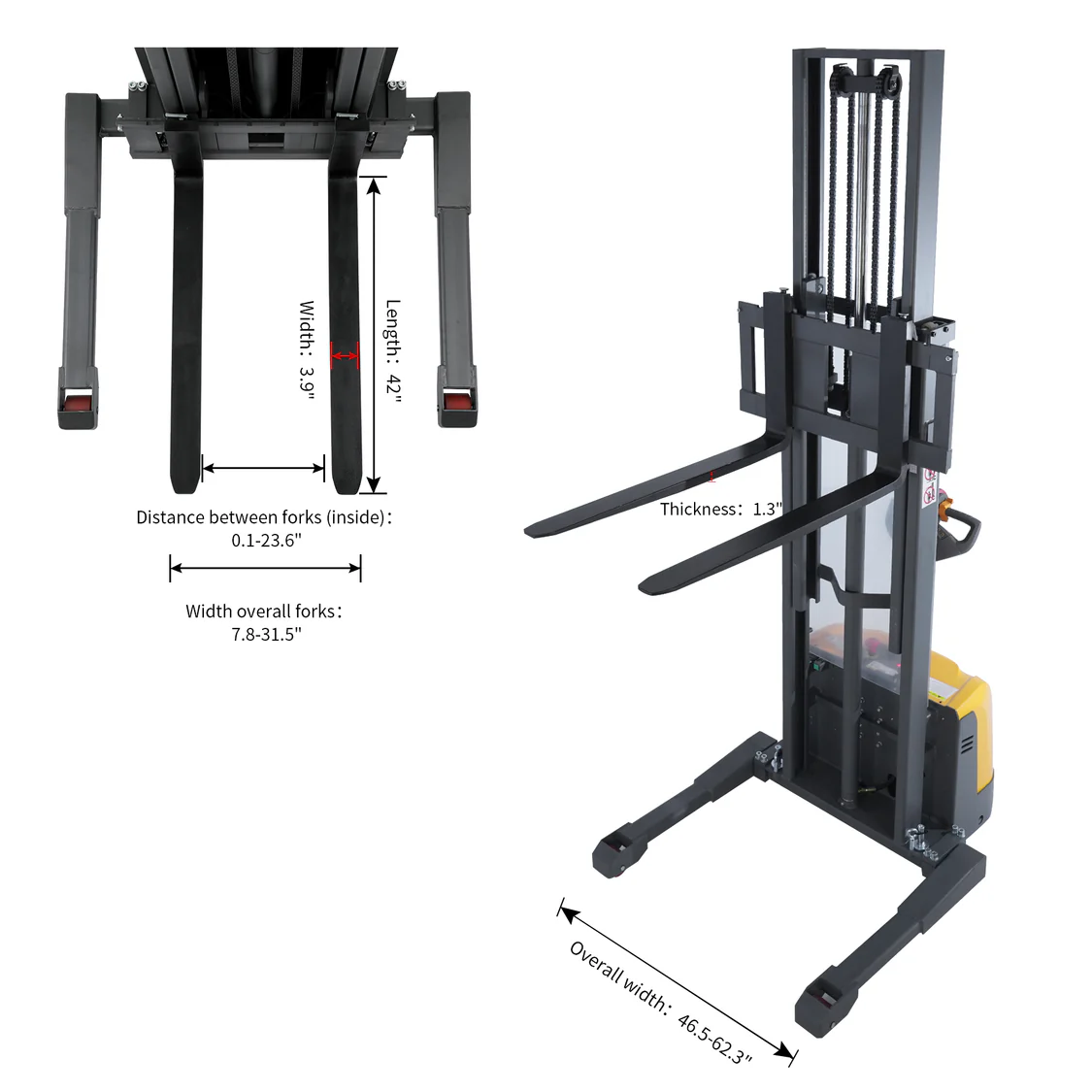

Fork Dimensions 42" L × 7.8–31.5" W × 1.3" Thick
Inside Fork Width 0.1"–23.6"
Overall Width 46.5"–62.3"

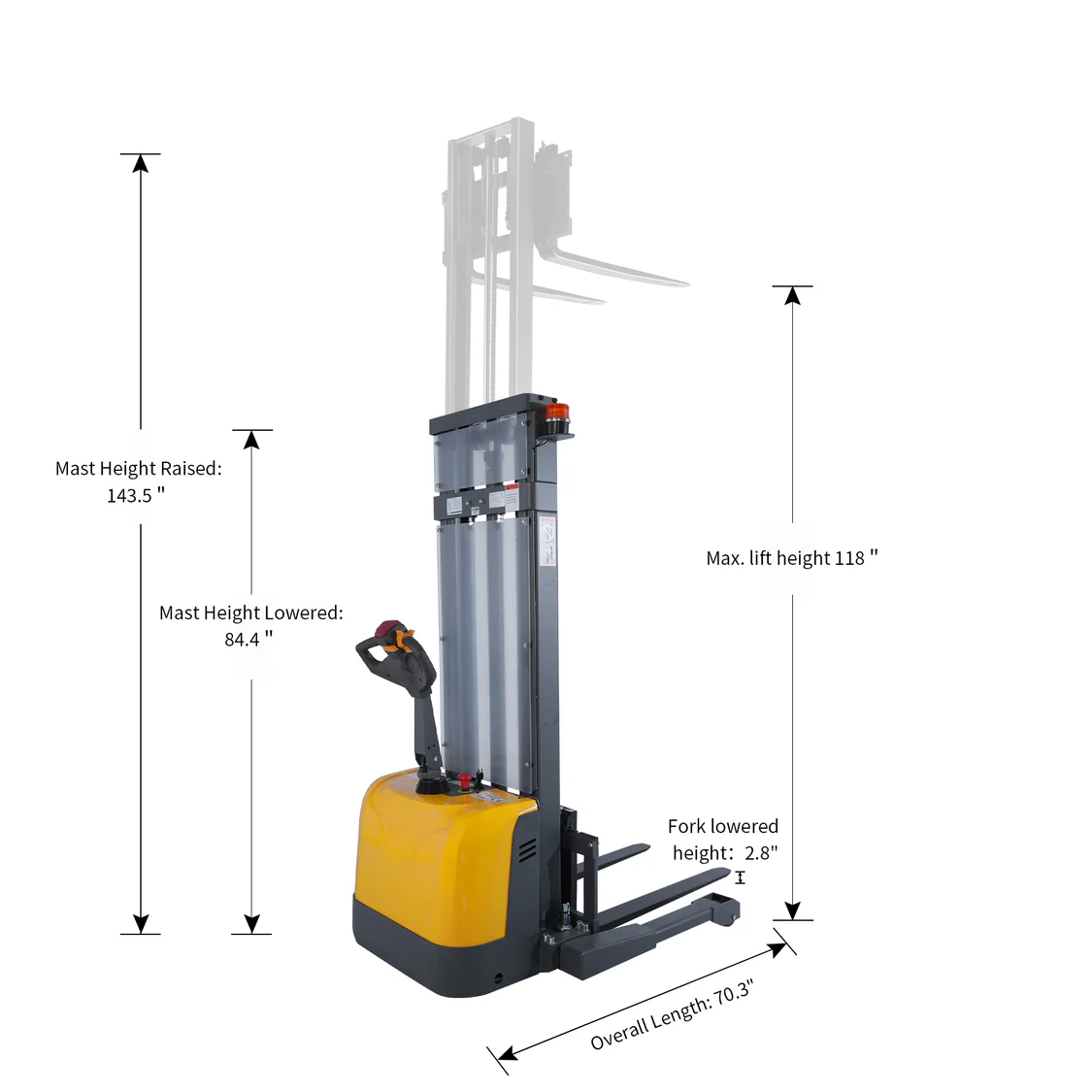

Overall Length 70.3"
Max Lifting Height 118"
Mast Height (Lowered / Extended) 84.4" / 143.5"
Fork Lowered Height 2.8"
Battery 24V / 100Ah
Charger 24V / 10A Built-in
Travel Speed (L/U) 2.8 / 3.1 mph
Lifting Speed (L/U) 3.5 / 5.9 inch/s
Lowering Speed (L/U) 5.9 / 4.3 inch/s
Service Weight 1220 lbs

Product manuals and documents

CTD15R-EN_Operation_Manual_20240613.pdf

View Download
